AMD openSIL Meets Coreboot on EPYC 9005, and the Homelab Firmware Stack Finally Gets Interesting

The short version: AMD openSIL is no longer just a slide-deck promise or a reference-platform science project. Thanks to 3mdeb’s Dasharo port for the Gigabyte MZ33-AR1, a retail single-socket EPYC server motherboard can now run an openSIL plus Coreboot firmware stack on AMD EPYC 9005 hardware. Michael Larabel’s Phoronix hands-on shows the most interesting part for builders: this is not only compiling code, it is booting real server silicon.

That matters because AMD’s traditional server firmware path has been tied to AGESA and vendor UEFI images. Those images usually work, but for security teams, firmware developers, hyperscalers, and obsessive homelab builders, they are hard to audit, hard to trim, and hard to compare in a clean way. AMD’s openSIL project changes the model by splitting silicon initialization into C libraries that can be linked into host firmware. Coreboot supplies the lightweight host firmware side, while Dasharo packages that work into a distribution with board-specific release notes, update flows, and validation.

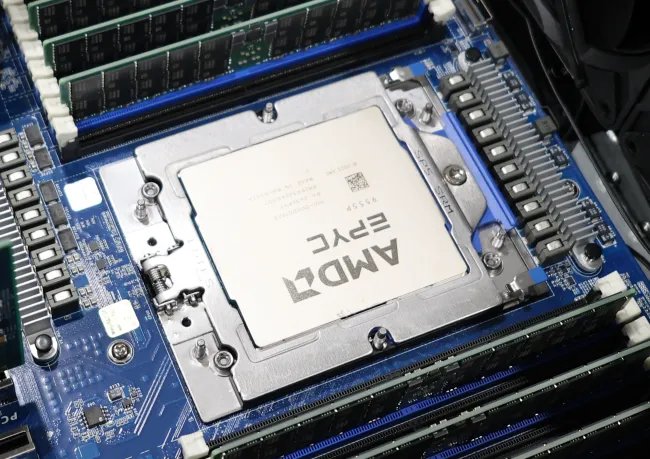

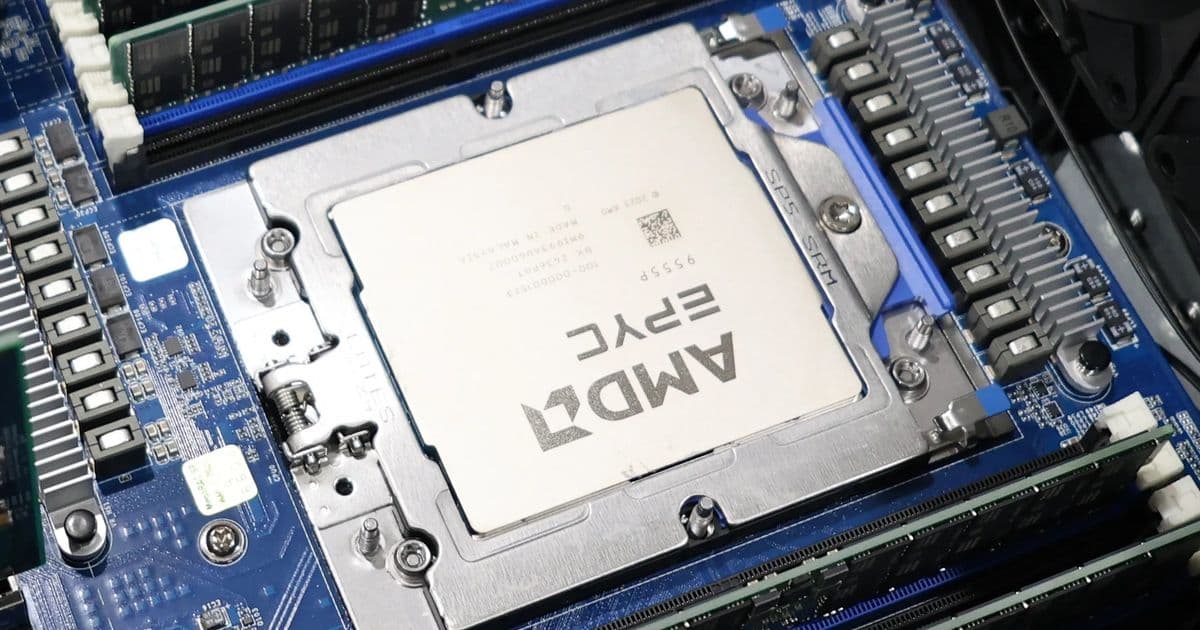

Product: EPYC 9005 on a Gigabyte MZ33-AR1, now with Dasharo

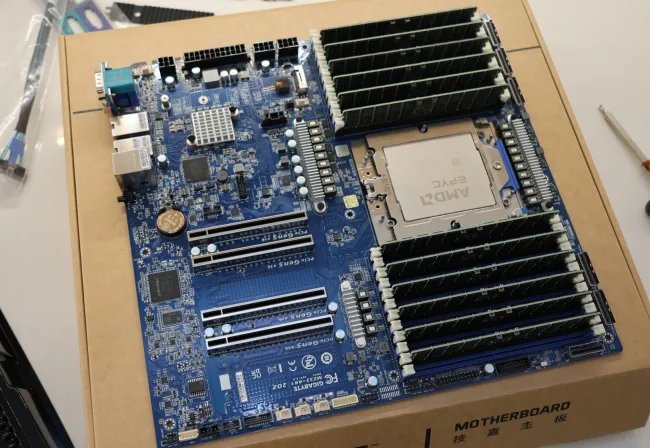

The board in play is the Gigabyte MZ33-AR1, a full-size single-socket server platform for AMD EPYC. Dasharo’s own MZ33-AR1 documentation describes it as supporting AMD Genoa and Turin EPYC processors, which puts this port in a different class from the old open-firmware AMD story. This is not a decade-old Opteron board being kept alive for ideological purity. This is modern Zen 5 server hardware with current I/O expectations, current memory capacity expectations, and the kind of platform you could actually put into a rack for virtualization, build workers, storage services, or lab automation.

The firmware stack looks like this:

Layer	Role	Why builders should care
AMD openSIL	Silicon initialization libraries	Handles the low-level CPU, memory, and platform bring-up work that AGESA historically covered
Coreboot	Host firmware	Initializes the board quickly and hands off to payloads or UEFI services with less closed firmware surface
Dasharo	Board-specific firmware distribution	Adds release packaging, documentation, validation, update guidance, and security defaults
BMC flashing path	Deployment mechanism	Lets the MZ33-AR1 move to or from Dasharo through the management interface, avoiding external SPI flashing for normal installs

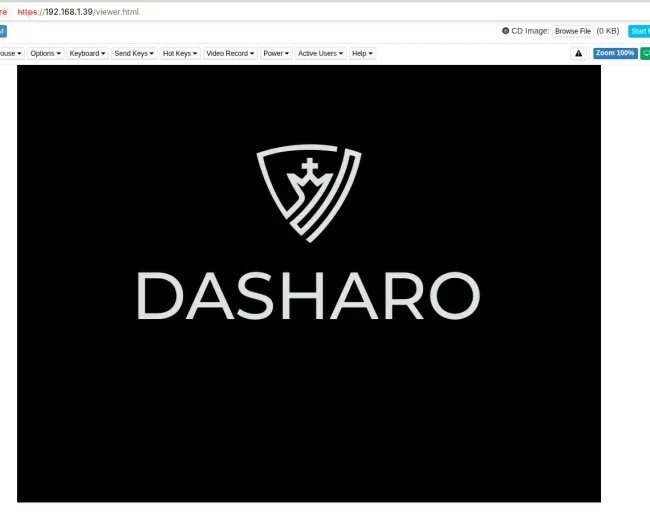

Dasharo’s release notes for the MZ33-AR1 list v0.9.0, dated May 14, 2026, as the initial release for the board. The feature list is the real signal. It includes UEFI-compatible boot, configurable boot options, Secure Boot support, USB boot, NVMe boot, Ubuntu LTS booting, Windows 11 booting, serial console redirection, TPM measured boot, AMD ROM Armor based SMM BIOS write protection, BMC firmware flashing with RBU files, AMD SME, AMD SEV-SNP support, memory context save and restore, ACPI CPU temperature reporting, and SBOM generation for AMD PSP blobs.

That is a long way from “it shows a prompt if you hold the right jumper.” It is still not something I would call a drop-in production BIOS replacement for every EPYC deployment, but the bones are there for serious testing.

Performance data: the right first benchmark is boot behavior

The first thing to measure on a firmware swap is not Cinebench, kernel compile time, or PostgreSQL TPS. Those workloads should not change much once the operating system is running unless firmware settings alter memory training, NUMA exposure, boost behavior, C-states, PCIe policy, or security features. The first benchmark is firmware behavior itself.

A good lab run should capture cold boot, warm reboot, BMC-initiated power cycle, time to VGA or serial output, time to bootloader, time to Linux userspace, and whether boot time changes after memory context save and restore has warmed up. Coreboot-based stacks often win by doing less pre-OS work, but server platforms complicate that because memory training, PCIe enumeration, BMC handoff, option ROM policy, and Secure Boot all add measurable time.

A sane first-pass comparison table looks like this:

Test	Vendor BIOS baseline	Dasharo openSIL plus Coreboot target	What to watch
AC restore to first serial output	Measure with smart PDU and serial logger	Measure same way	BMC delay can hide firmware gains
AC restore to bootloader	Measure from power-on event	Measure from power-on event	NVMe discovery and boot order policy matter
Warm reboot to bootloader	Measure from reboot command	Measure from reboot command	Memory context restore can change this sharply
Linux boot to SSH	Measure with systemd-analyze plus external timer	Measure with same OS image	Kernel and initrd noise must be controlled
Idle package power	Read from wall and platform sensors	Read same sensors	Firmware C-state defaults can dominate
All-core sustained power	Use fixed workload and wall meter	Use same workload	BIOS power limits and boost tables must match
NVMe link state	Record PCIe generation and width	Record generation and width	A x16 slot at x8 or Gen4 instead of Gen5 is a real regression
Memory bandwidth	Run STREAM or likwid-bench	Run same binary and NUMA binding	Memory timing or interleaving changes show up fast

Phoronix reports that the latest builds were stable after early issues with Turin Dense support and high-core-count data structures were addressed. That is valuable, because the ugly failures are exactly where firmware ports usually get exposed. High core counts stress AP bring-up, ACPI table generation, topology reporting, and firmware data structure sizing. Dense Turin variants add another compatibility axis. A firmware stack that only works on low-core-count validation CPUs is not enough for EPYC buyers who buy EPYC precisely for core density.

Power consumption: measure at the wall, then explain the sensors

For power, I would split testing into three buckets: pre-boot power, idle OS power, and loaded OS power. Firmware can affect all three, but not equally.

Pre-boot power is the messy one. During memory training and device enumeration, the system may pull a burst that looks ugly on a PDU graph but has little impact on daily energy use unless the machine reboots often. Still, it is useful for lab automation. A rack that power-cycles twenty nodes during validation can trip limits if the firmware stack changes inrush timing or fan behavior.

Idle power is more interesting. If Dasharo exposes different defaults for C-states, deterministic performance, memory power management, PCIe ASPM, or fan curves, the wall meter will catch it. A 20 W idle difference on a server that runs 24/7 is about 175 kWh per year. In a homelab, that is visible on the bill. In a small cluster, it becomes cooling load.

Loaded power should be tested with fixed workloads and fixed firmware settings. For CPU, run something repeatable like stress-ng, y-cruncher, SPEC-style internal workloads if licensed, kernel builds, or Phoronix Test Suite workloads. For memory, run STREAM with CPU affinity. For I/O, test fio against the same NVMe device, same queue depth, same governor, same filesystem state. If performance differs, check the boring items first: power cap, boost mode, NUMA nodes, memory speed, PCIe link speed, SMT state, and kernel command line.

My minimum power sheet for this platform would be:

Scenario	Instrumentation	Pass condition
BMC idle, host off	Smart PDU plus BMC sensor dump	No unexplained increase after firmware swap
Firmware setup screen idle	Wall power, fan RPM, CPU temp	Fans do not pin without thermal reason
Linux idle, 30 minutes settled	Wall power, turbostat, sensors	C-states and clocks behave as expected
100 percent CPU load, 15 minutes	Wall power, package telemetry, temperatures	Sustained clocks match vendor BIOS within margin
NVMe write load	Wall power plus drive telemetry	PCIe speed and cooling policy remain correct

The big warning is that open firmware does not automatically mean lower power. It means you can inspect and tune more of the path. A closed BIOS with mature power tables can beat a young open stack if the open stack still has conservative defaults. The win is that the reason becomes discoverable instead of hidden behind a vendor setup menu.

Compatibility: this is usable, but not boring yet

Dasharo’s MZ33-AR1 release notes list a strong compatibility base, including Ubuntu LTS, Windows 11, USB boot, NVMe boot, Secure Boot, TPM measured boot, and UEFI capsule update support. That covers the core OS install path for a lot of labs. Proxmox and other hypervisor use cases are not explicitly the same as “Ubuntu boots,” though. For a builder, the checklist should be stricter.

Component	What to validate before trusting it
EPYC CPU	Exact OPN, core count, Dense versus non-Dense variant, SMT behavior, reported topology
DDR5 RDIMM	Capacity, speed, channel population, ECC reporting, memory training repeatability
NVMe	Bootability, PCIe generation and width, hot reset behavior, error counters
Add-in NIC	Link training, PXE/iPXE behavior, SR-IOV if used, ASPM settings
GPU or accelerator	PCIe resource allocation, Above 4G decoding, IOMMU groups
TPM	Measured boot PCR values, OS visibility, recovery flow after firmware change
Secure Boot	Key enrollment, OS shim behavior, kernel module signing policy
Virtualization	IOMMU, SEV-SNP exposure, nested virtualization if needed
Remote management	BMC power control, serial-over-LAN, firmware rollback path

The known-issue list also deserves respect. Dasharo notes issues including capsule behavior across resets, previous power-state restoration when powered off, Linux I3C initialization failure, Fast Boot not reducing boot time, and inconsistent measurements after flashing and reset-to-defaults. None of those automatically blocks lab use, but each one maps to a real operational habit. If your rack expects nodes to return after a power outage, power-state restoration matters. If your security workflow depends on stable measurements, inconsistent post-flash measurements need investigation before the platform handles sensitive workloads.

Why openSIL changes the AMD firmware conversation

AMD’s openSIL architecture writeup describes three library groups: xSIM for silicon initialization, xPRF for platform reference firmware, and xUSL for utilities and services. The design goal is to make silicon initialization linkable into different host firmware projects instead of binding it tightly to a monolithic UEFI implementation.

That split matters. Server firmware is not one thing. It is CPU initialization, memory training, PSP interaction, ACPI table generation, PCIe setup, RAS plumbing, boot policy, security policy, update mechanisms, and a user interface. When everything ships as one opaque vendor BIOS, debugging becomes a support ticket and a prayer. When the stack is split into auditable layers, a firmware engineer can reason about where a bug belongs.

For homelab builders, the practical gain is simpler: fewer mystery boxes. If a BIOS update changes idle power, you can compare configuration and code. If a high-core-count CPU exposes a table-size assumption, that bug can be fixed where the assumption lives. If Secure Memory Encryption should be enabled by default, the firmware distribution can make that policy explicit.

Build recommendations: who should flash this now

This is where I would draw the line.

Builder profile	Recommendation	Reason
Firmware developer	Flash and test	This is exactly the hardware class that needs coverage
Security lab	Flash on non-production nodes	Measured boot, SBOM work, and open review are worth evaluating
Homelab virtualization host	Try it if you can tolerate rollback testing	BMC flashing lowers risk, but validate power recovery and IOMMU first
Storage server	Wait unless you have backups and a second boot path	NVMe and SATA support exist, but storage boxes punish firmware surprises
Production fleet	Pilot only	AMD still frames openSIL as pre-production for this generation

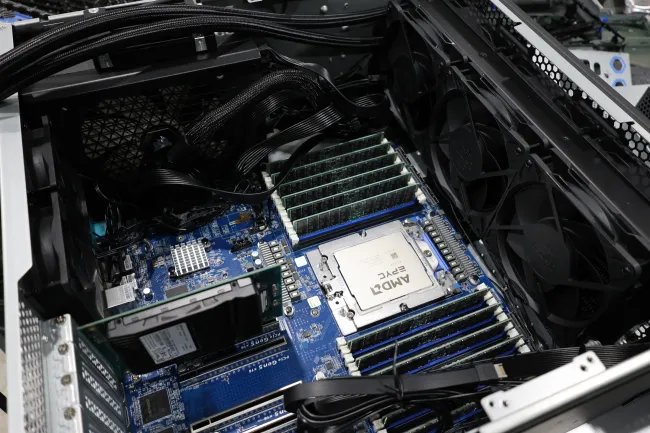

For a careful EPYC lab build, I would start with a single MZ33-AR1, one supported Turin or Genoa CPU, a conservative RDIMM population, one boot NVMe, one known-good NIC, and a serial log. Flash through the BMC, keep the vendor BIOS image ready, and record every firmware setting before and after. Then run the same OS image under both firmware stacks.

The benchmark pack should include boot timing, lscpu topology capture, dmidecode, fwupd security output, turbostat idle logs, STREAM, fio, stress-ng, iperf3 if networking matters, and a 24-hour idle plus load cycle. For virtualization, add IOMMU group dumps, VFIO passthrough tests, live migration if the node joins a cluster, and SEV-SNP reporting checks if confidential computing is part of the build plan.

My bias as a measurement-first homelab builder is simple: do not flash firmware because it feels cleaner. Flash it because you are going to measure what changed. The exciting part of this openSIL plus Coreboot milestone is that the measurements can now include the firmware stack itself, not just the operating system sitting above it.

Bottom line

AMD openSIL plus Coreboot on the Gigabyte MZ33-AR1 is the first AMD server firmware story in years that feels both modern and testable. It brings open firmware to EPYC 9005-class hardware, supports a credible list of boot and security features through Dasharo, and can be deployed through the board’s BMC instead of requiring a bench full of SPI tools.

The caution flag is still up. AMD’s openSIL roadmap has treated production readiness as a later target, and Dasharo’s first MZ33-AR1 release has known issues that real operators should read before flashing. But for builders who care about boot measurements, power behavior, firmware auditability, and reproducible platform state, this is the point where AMD open firmware stops being theoretical and starts becoming something you can put on a rack shelf, instrument, and argue about with data.
