Asus and Noctua's collaboration delivers the quietest RTX 5080 ever tested, but its massive size and premium price make it a niche product for enthusiasts who prioritize silence above all else.
The Asus GeForce RTX 5080 Noctua Edition represents the pinnacle of quiet computing in the graphics card market, delivering unprecedented noise levels without compromising performance. This massive air-cooled behemoth weighs in at 5.9 pounds (2.67 kg) and stretches over 15 inches long, making it one of the largest graphics cards ever produced.
The Engineering Behind the Silence

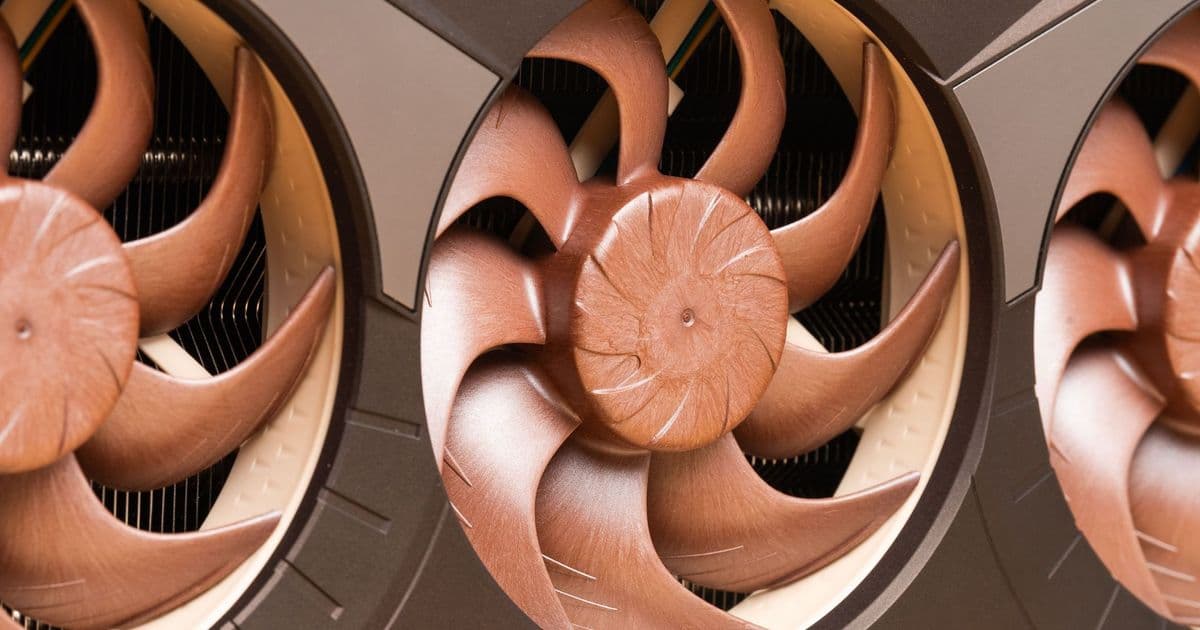

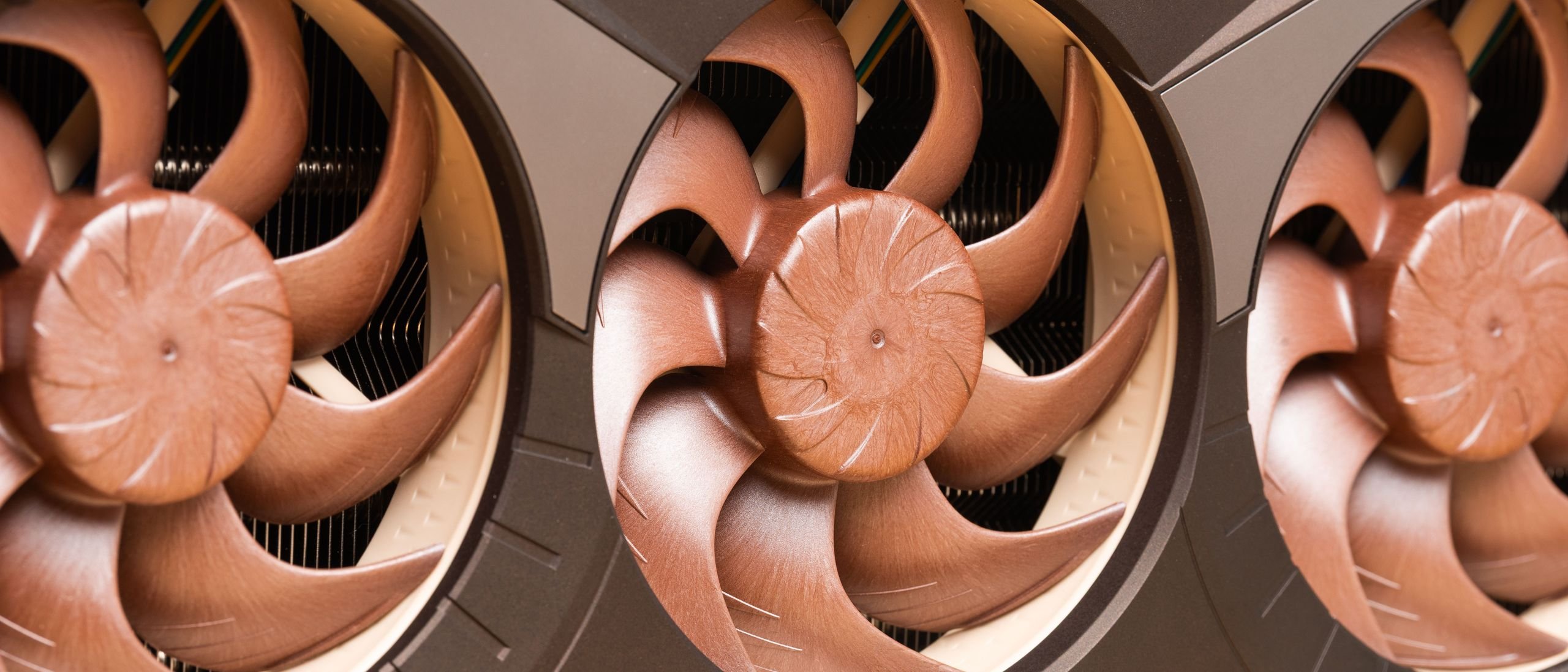

The RTX 5080 Noctua Edition achieves its whisper-quiet operation through an uncompromising design philosophy. At its core are three NF-A12x25 G2 fans, each featuring meticulously optimized blade curvature, ridged fan hubs, and winglet-tipped blades. These fans sit so close to their frames that attempting to slide paper between them causes movement—a testament to Noctua's obsessive attention to detail.

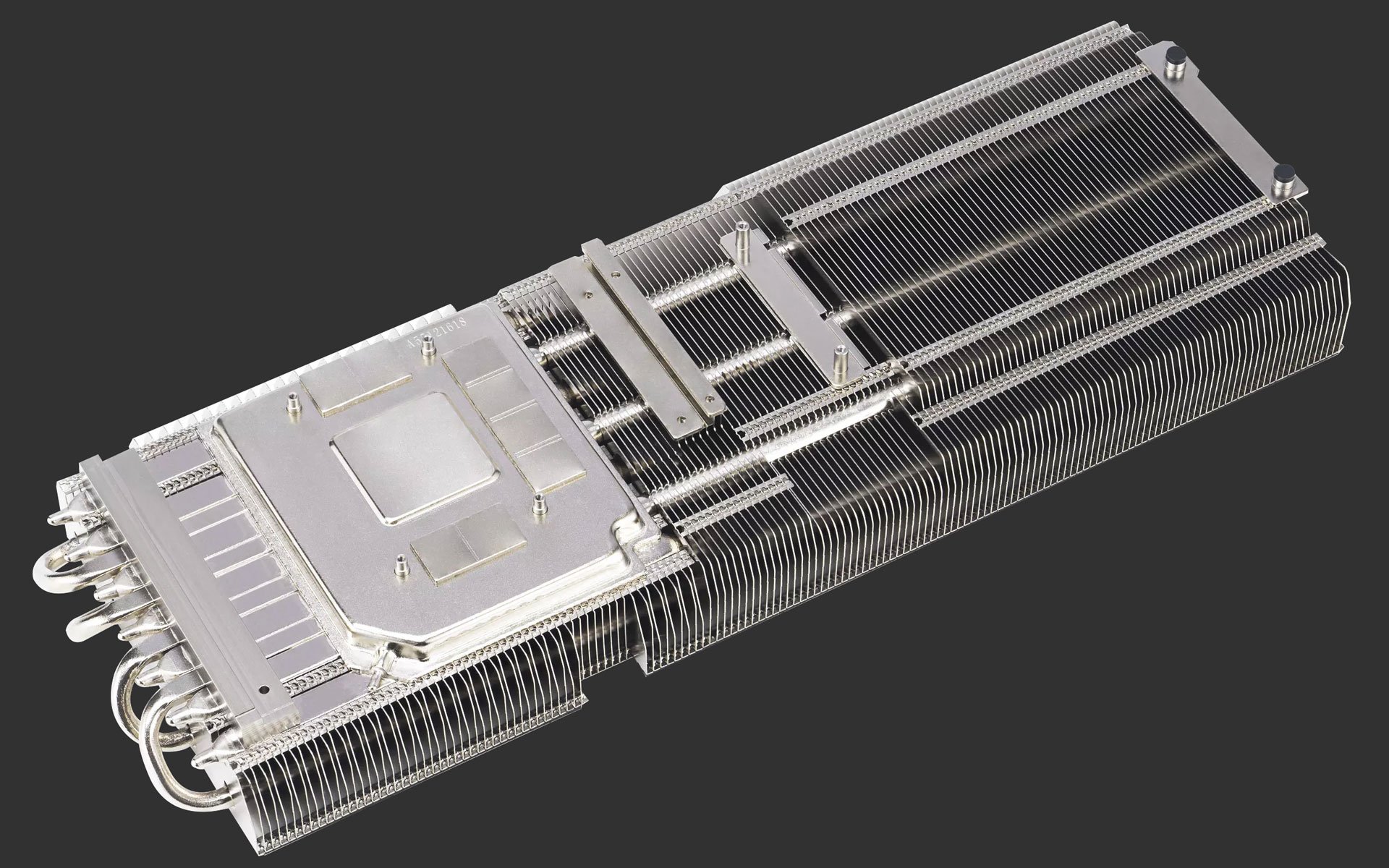

The cooling solution pairs these fans with a vapor chamber baseplate connected to 11 heat pipes running through a 14.5-inch fin stack. The vapor chamber covers both the GPU and surrounding GDDR7 memory, while the VRM power phases connect to the heatsink via a dedicated metal contact plate. This comprehensive thermal design allows the fans to spin at remarkably low speeds while maintaining excellent temperatures.
Performance Without Compromise
Despite its focus on silence, the RTX 5080 Noctua Edition delivers full Blackwell performance. With 10,752 CUDA cores, 16GB of GDDR7 memory, and a 360W TGP, this card maintains the same gaming prowess as standard RTX 5080 models. In our testing, it achieved impressive frame rates across modern titles while maintaining noise levels that were virtually imperceptible under typical gaming loads.
The card also offers substantial overclocking headroom. Users can push performance higher without any increase in noise levels, thanks to the massive thermal capacity of the cooling solution. This makes it particularly appealing for enthusiasts who want both quiet operation and the ability to extract maximum performance when desired.
Design and Build Quality

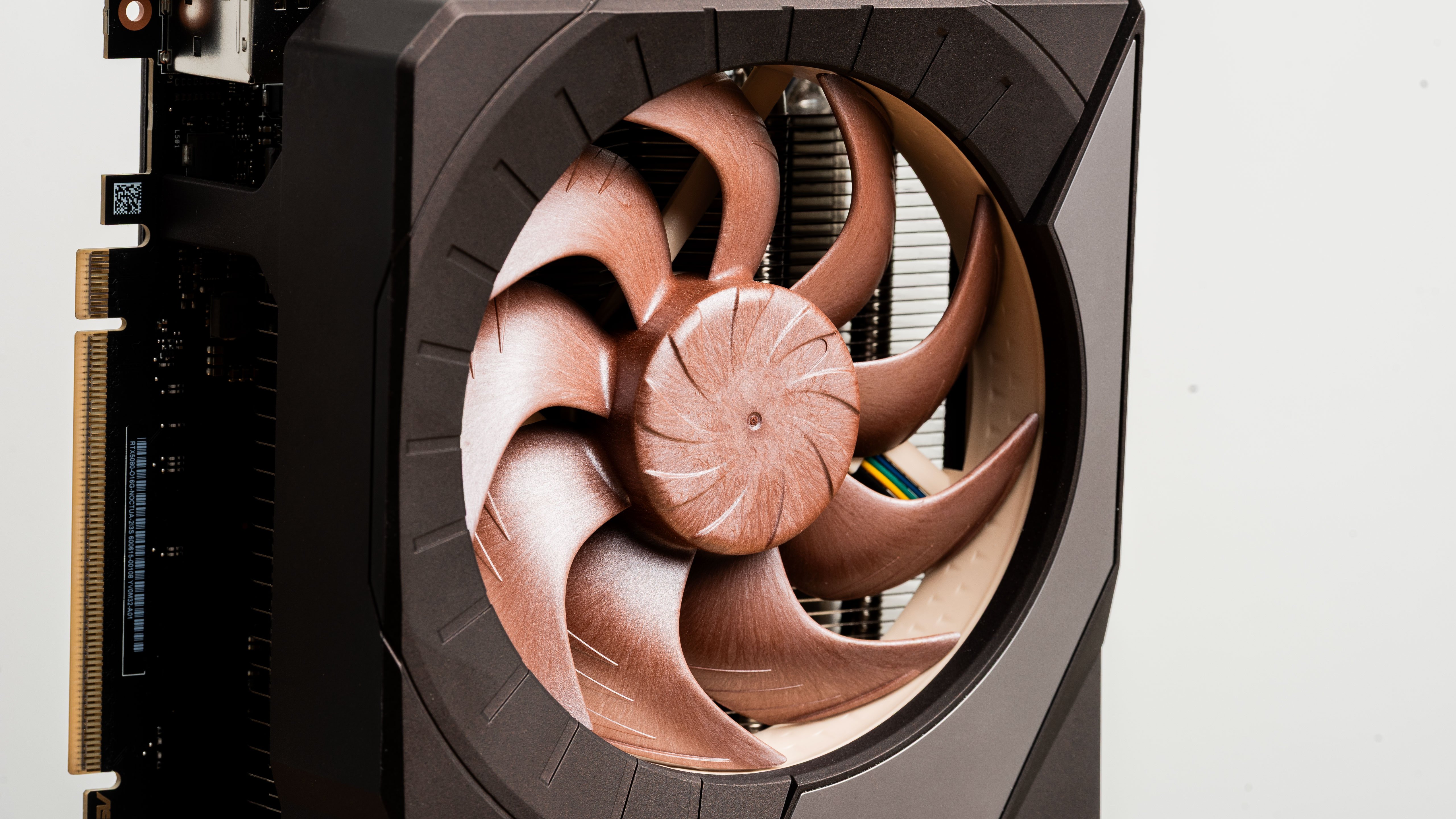

The industrial design of the RTX 5080 Noctua Edition is as polarizing as it is distinctive. The muted brown color scheme with subtle sparkle finish extends across the plastic fan shroud and metal backplate. Three NF-A12x25 G2 fans in their signature brown-and-tan color scheme dominate the front, immediately identifying this as a Noctua product.
Subtle design touches abound for Noctua enthusiasts. Metallic accents on the face suggest wings or eyebrows, while the backplate features a flow-through cutout incorporating half of Noctua's owl logo. Painted stripes on the backplate are so precisely executed they initially appear to be embossed metal.
Practical Considerations
The RTX 5080 Noctua Edition's massive dimensions present significant installation challenges. At 15 inches long, 5.3 inches wide, and 3.2 inches tall, it requires a case with substantial clearance. The 5.9-pound weight demands careful consideration of PCIe slot strength and potentially requires additional support to prevent motherboard stress.
Power delivery is handled through a single 12V-2x6 connector, and Asus recommends an 850W power supply. The card occupies four expansion slots, though much of that space is dedicated to the fans themselves rather than heatsink surface area.
Pricing and Market Position
With an MSRP of $1,699.99, the RTX 5080 Noctua Edition commands a significant premium over the $999.99 Founders Edition. This $700 price difference reflects the specialized engineering, premium components, and limited market appeal of this ultra-quiet solution.
The card targets a specific audience: Noctua enthusiasts, quiet computing obsessives, and users building systems where noise levels are paramount. For these users, the premium is justified by the unique combination of silent operation, full performance, and overclocking capability.
The Verdict
The Asus RTX 5080 Noctua Edition succeeds spectacularly at its primary goal: delivering RTX 5080 performance with unprecedented noise levels. It's unquestionably one of the quietest graphics cards ever tested, achieving this through uncompromising engineering and premium components.
However, its massive size, premium price, and distinctive brown color scheme limit its appeal to a niche audience. Users must weigh the benefits of silent operation against the practical challenges of installation, the premium cost, and the polarizing aesthetics.
For those who prioritize silence above all else and have the budget and case clearance to accommodate it, the RTX 5080 Noctua Edition represents the ultimate expression of quiet gaming performance. It's a triumph of engineering that proves high-performance graphics cards don't have to be loud, even if they do have to be big and expensive to achieve that goal.
Specifications Comparison
| Specification | RTX 5080 Founders Edition | RTX 5080 Noctua Edition |
|---|---|---|
| GPU | Nvidia GB203 | Nvidia GB203 |
| SMs | 84 | 84 |
| CUDA Cores | 10,752 | 10,752 |
| Boost Clock (MHz) | 2,617 | 2,700 |
| VRAM Type | GDDR7 | GDDR7 |
| VRAM Clock | 1,750 | 1,750 |
| VRAM Capacity | 16GB | 16GB |
| Memory Bandwidth | 960 GB/s | 960 GB/s |
| Peak FP32 TFLOPS | 56.3 | 58.1 |
| TGP (Watts) | 360 | 360 |
| Power Connectors | 1x 12V-2x6 | 1x 12V-2x6 |
| Recommended PSU | 850W | 850W |
| Dimensions (LWD) | 12" x 4.8" x 1.6" | 15" x 5.3" x 3.2" |
| Weight | 3.6 lb | 5.9 lb |
| MSRP | $999.99 | $1,699.99 |
The RTX 5080 Noctua Edition proves that in the world of high-performance graphics, silence comes at a cost—both literal and figurative. But for those who demand the quietest possible gaming experience without sacrificing performance, it delivers in ways no other card can match.
