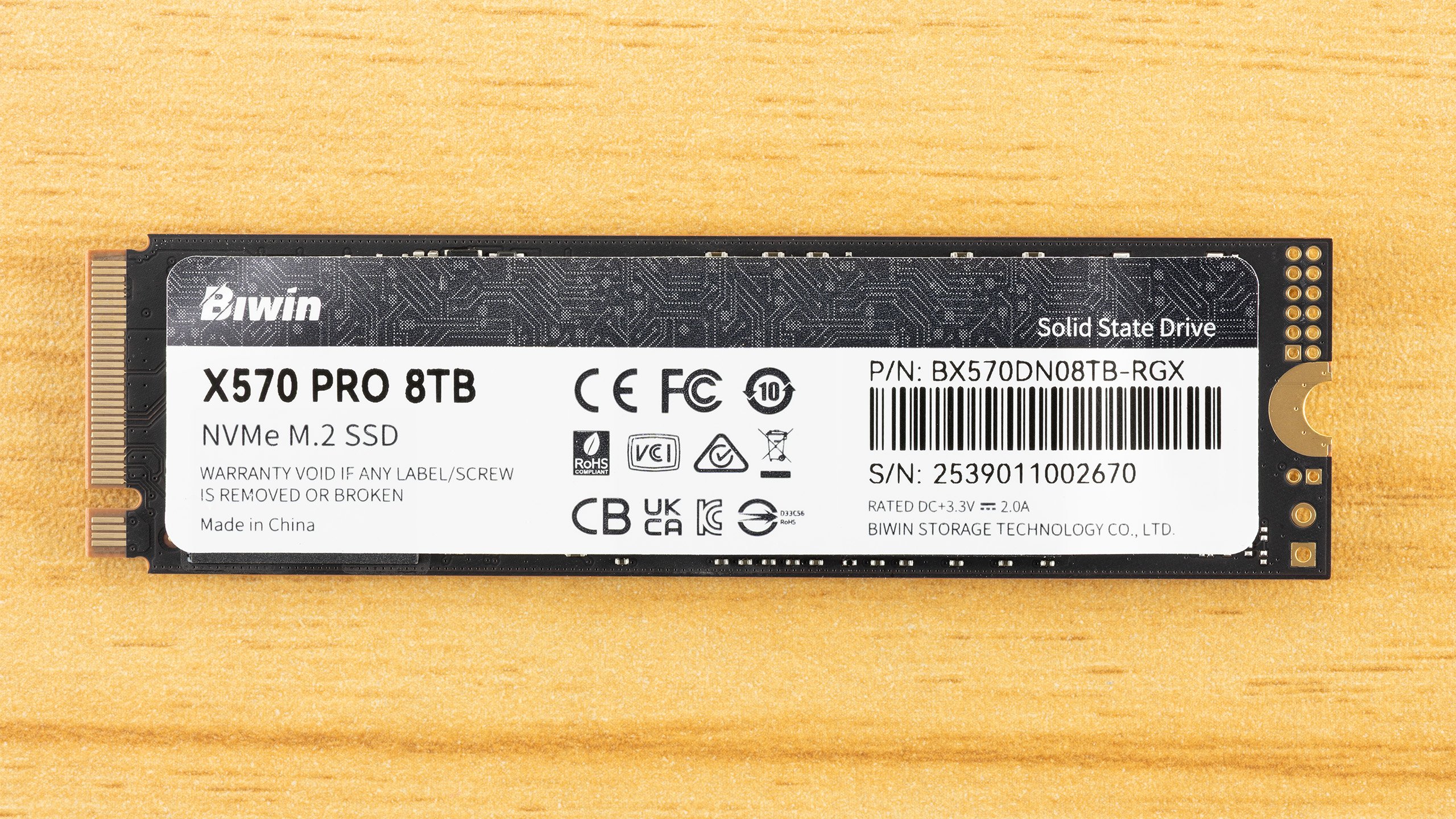

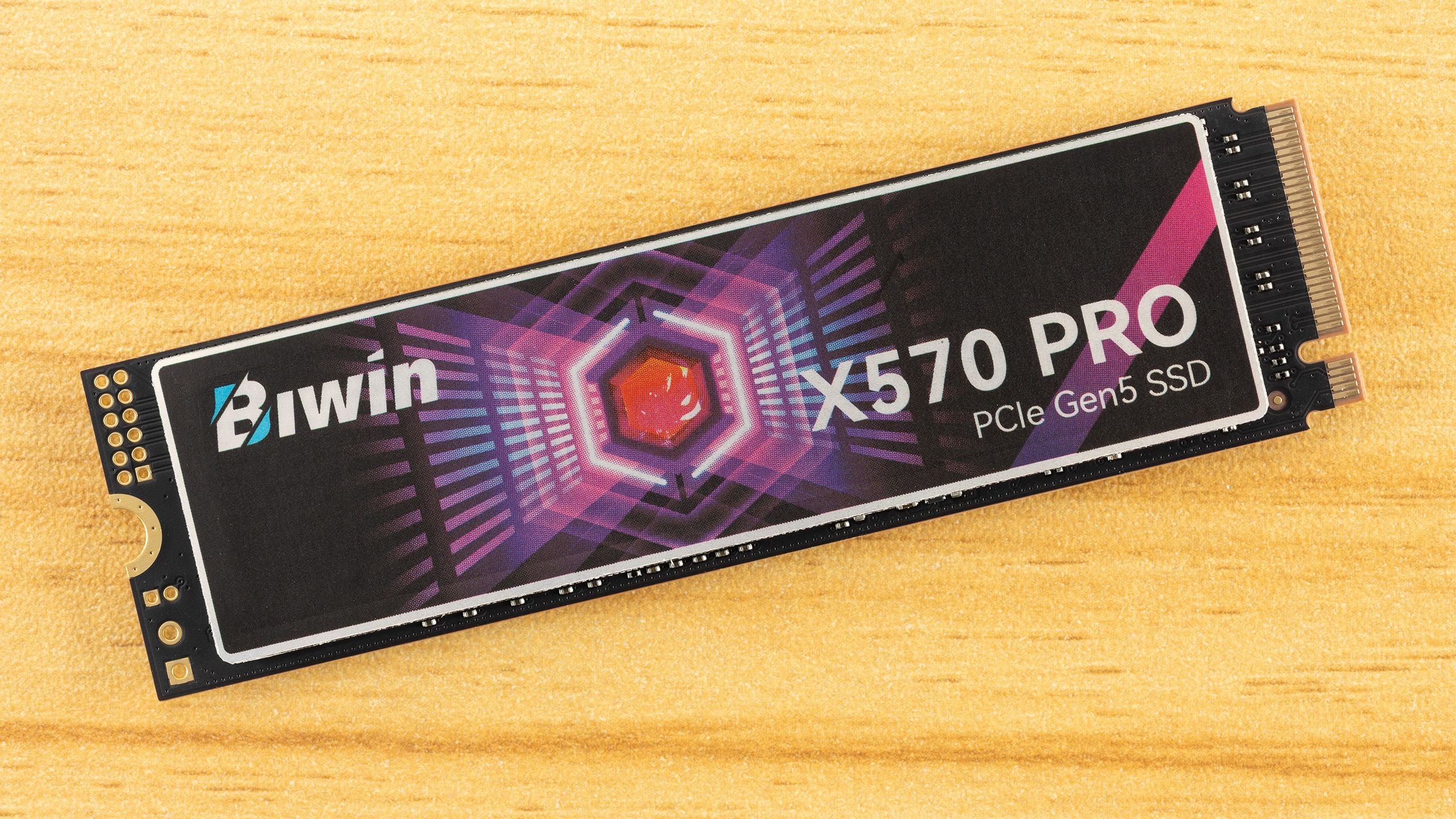

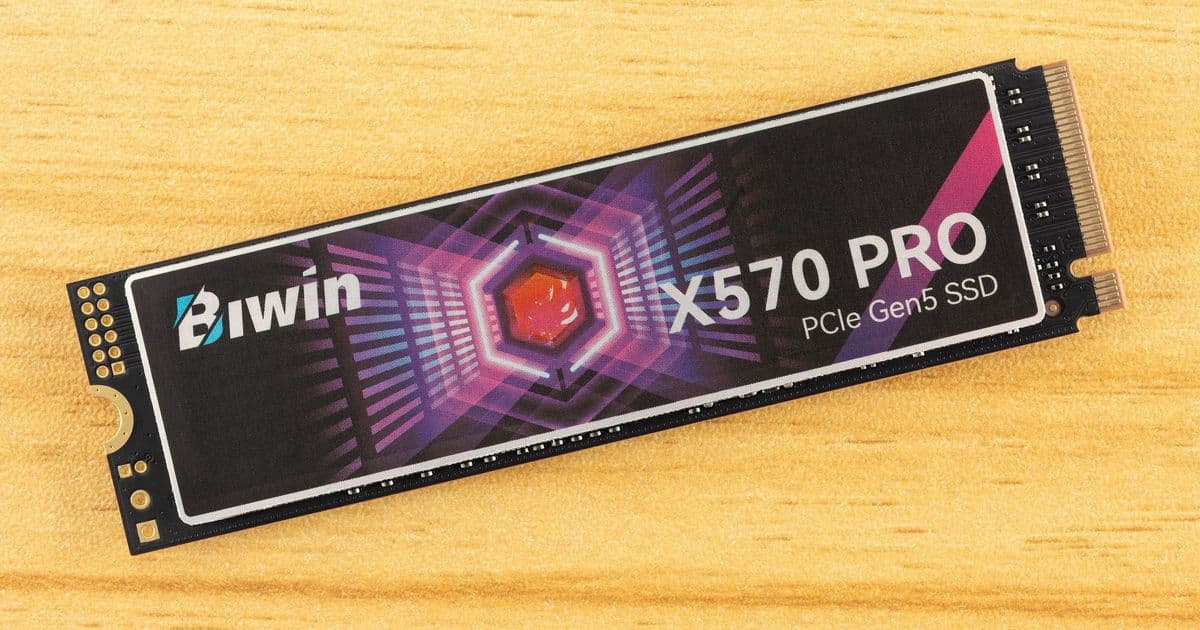

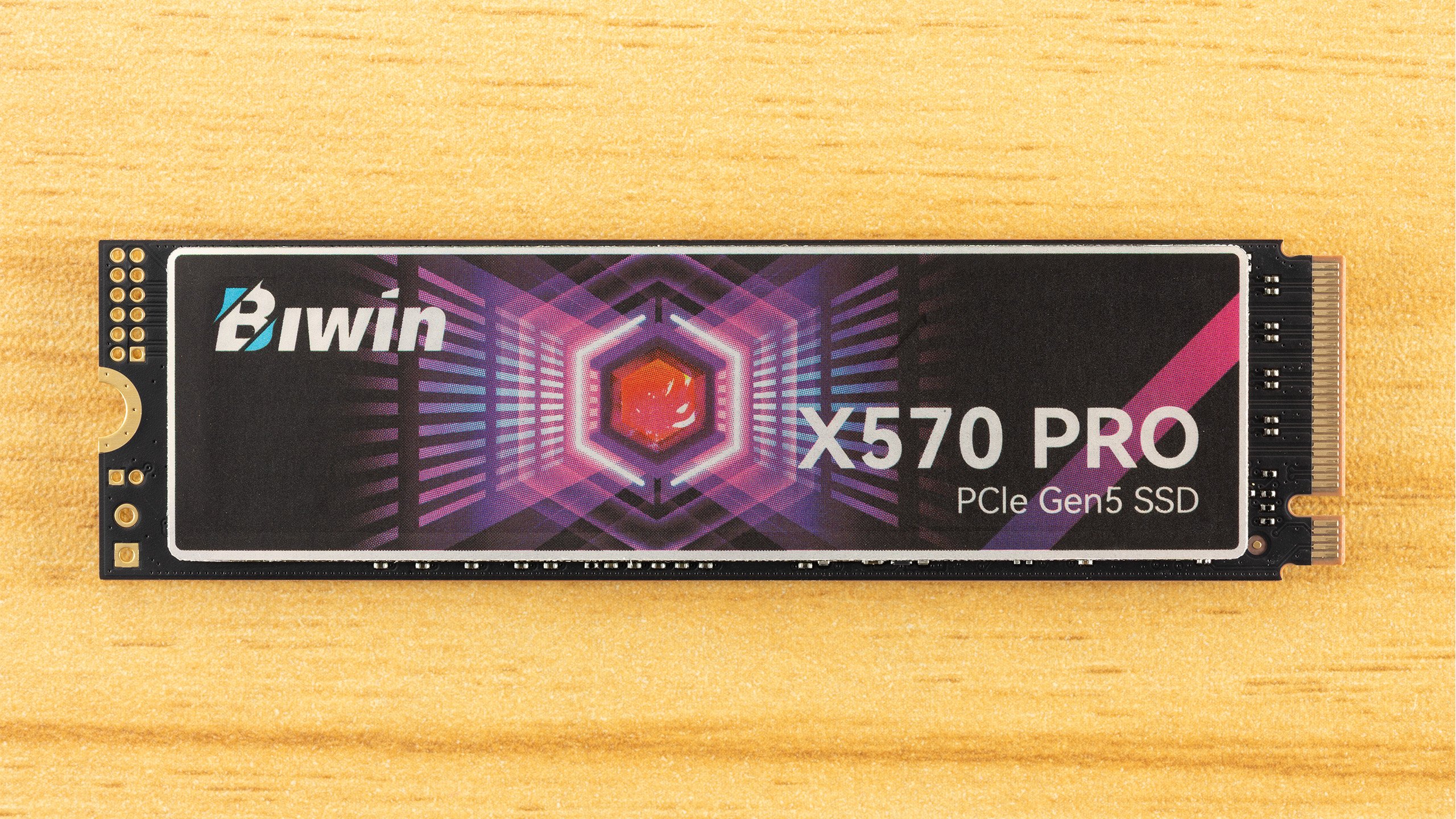

Biwin Black Opal X570 Pro SSD Review: An 8TB unobtanium monster

The Biwin Black Opal X570 Pro represents a significant milestone in consumer storage: an 8TB PCIe 5.0 SSD that actually exists and performs well. In a market where high-capacity drives have become increasingly rare, this drive stands out as both a technical achievement and a practical option for enthusiasts seeking maximum capacity without sacrificing performance.

Performance That Matters

The X570 Pro delivers solid high-end performance with sequential read speeds up to 14,000 MB/s and sequential writes reaching 13,000 MB/s. While these figures don't break records, they place the drive firmly in the upper echelon of PCIe 5.0 SSDs. The random performance is equally impressive, with 2,000K IOPS for reads and 1,600K IOPS for writes.

What's particularly noteworthy is the drive's cache response. In testing, the X570 Pro demonstrated good sustained performance characteristics, maintaining speed even under heavy workloads. This is crucial for an 8TB drive that's likely to handle large file transfers and demanding applications.

The 8TB Reality Check

Eight terabytes of PCIe 5.0 storage was nearly mythical territory until recently. The Samsung 9100 Pro dominated this space, occasionally dropping to $749.99 during sales - what many considered the last opportunity to acquire such capacity at reasonable prices. The X570 Pro enters this exclusive club with competitive specifications and potentially better availability.

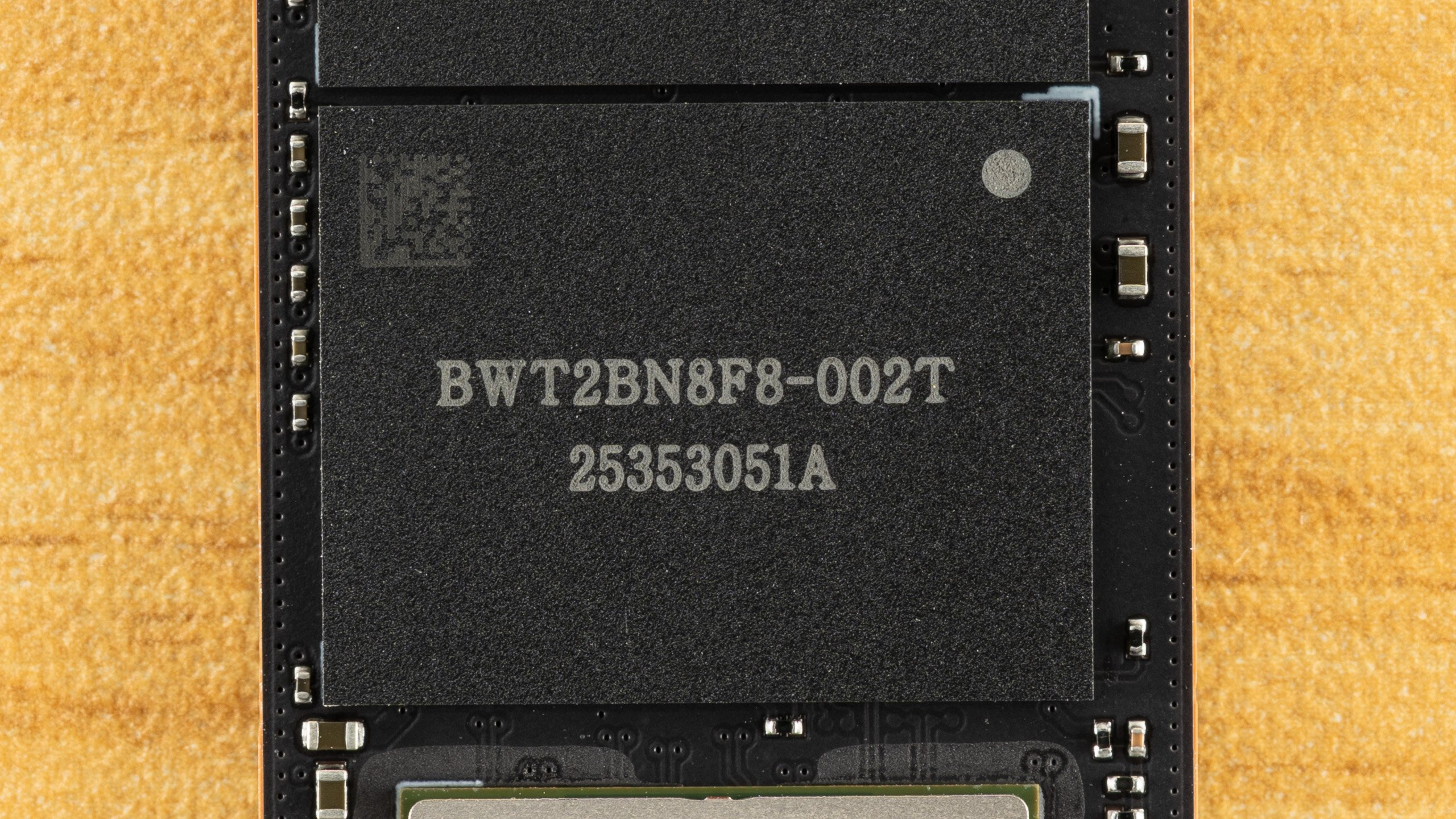

Biwin achieves this capacity through four 2TB flash modules, each containing sixteen 1Tb dies. This configuration represents the current state-of-the-art for cramming maximum capacity onto a single M.2 2280 drive while maintaining high performance. The flash is Micron 232-Layer TLC, coded by Biwin but representing proven technology.

Technical Architecture

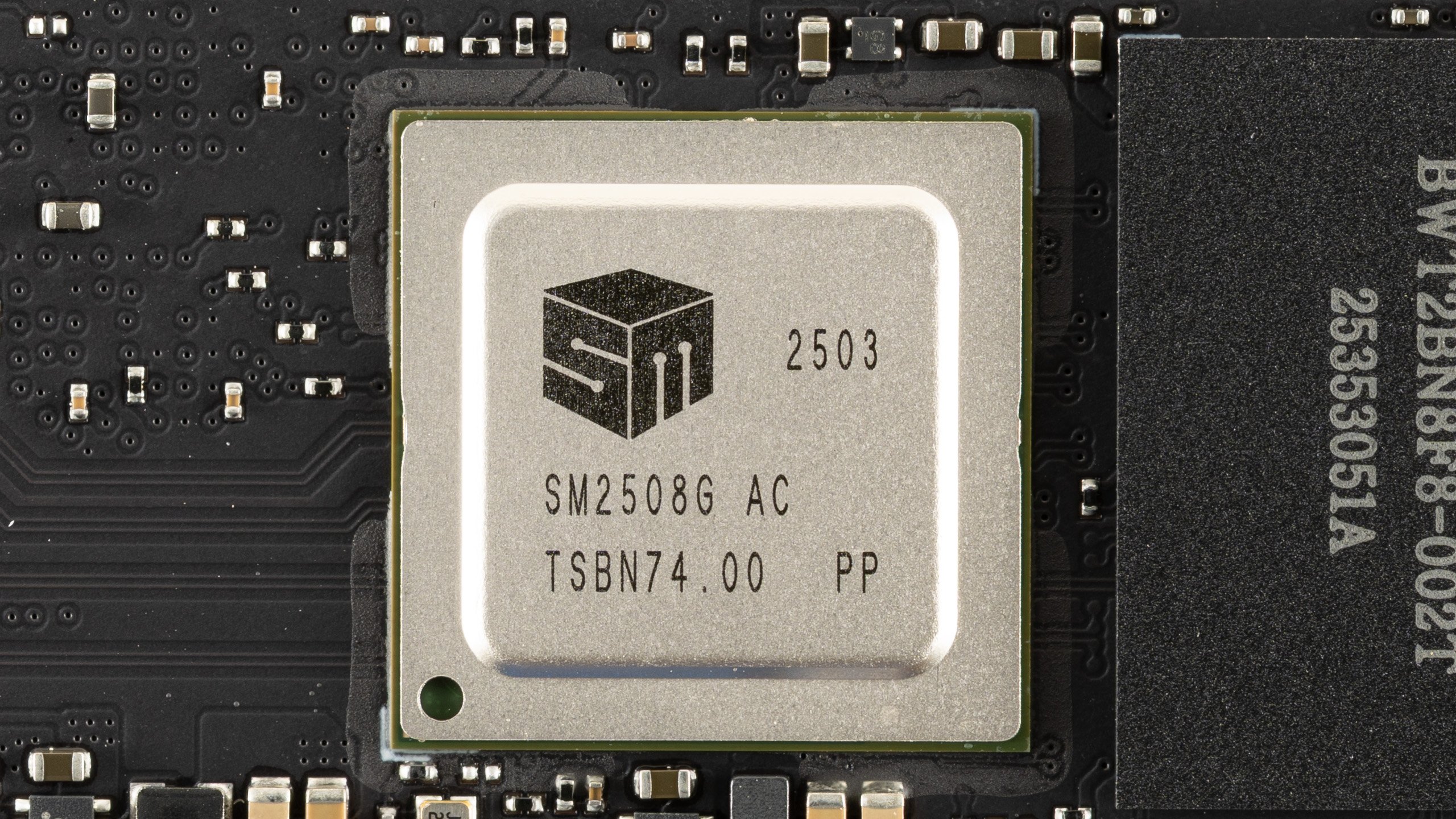

The drive centers around the Silicon Motion SM2508 controller, a DRAM-equipped solution with eight flash channels. This controller handles power management internally and proves capable of extracting maximum performance from the flash memory. The DRAM configuration is particularly interesting - rather than using multiple modules typically seen in high-capacity drives, Biwin employs a single 64Gbit (8GB) LPDDR4/LPDDR4X package on the back of the drive.

This architectural choice suggests careful optimization for space and thermal considerations. The double-sided design accommodates all components while maintaining reasonable thickness for M.2 2280 compatibility.

Software and Support

Biwin provides the Biwin Intelligence SSD toolbox application for Windows users. This comprehensive utility offers drive health monitoring, firmware updates, performance testing, and data migration capabilities. Having these tools integrated into a single application enhances the user experience and simplifies drive management.

The five-year warranty matches industry standards, but the endurance rating stands out at 750TBW per terabyte of capacity. This 25% increase over typical 600TBW ratings provides additional peace of mind for users planning heavy write workloads.

Power Efficiency Concerns

Despite its strengths, the X570 Pro faces criticism for power efficiency. While officially rated at under 7W, real-world testing showed maximum draws reaching 9.69W. This isn't catastrophic, but it's higher than some competing solutions and could impact laptop battery life or require additional cooling in compact systems.

The power consumption issue reflects the challenges of pushing PCIe 5.0 performance to maximum levels while maintaining reasonable efficiency. As NAND flash and controller technology continue evolving, future generations may address these thermal and power challenges.

Market Position and Availability

The most significant challenge facing the X570 Pro isn't technical - it's availability and pricing. With no official pricing announced at review time, potential buyers face uncertainty about whether this drive will deliver value comparable to established alternatives.

Biwin's aggressive market positioning suggests the company is serious about competing in the high-performance SSD segment. The X570 Pro represents their most ambitious offering yet, directly challenging Samsung's dominance in the premium capacity market.

The Bigger Picture

This drive's existence signals important trends in the SSD market. First, it demonstrates that PCIe 5.0 technology has matured enough to support 8TB capacities reliably. Second, it shows that companies beyond the traditional giants can compete at the high end when they leverage capable controllers and quality flash memory.

The X570 Pro's performance characteristics and capacity options (1TB, 2TB, 4TB, and 8TB) provide flexibility for different use cases. Whether you need maximum capacity for content creation, gaming libraries, or professional workloads, this drive offers a viable alternative to more established brands.

Should You Buy It?

For enthusiasts seeking 8TB of high-performance storage, the Biwin Black Opal X570 Pro deserves serious consideration. Its combination of capacity, performance, and warranty coverage makes it competitive with Samsung's offerings, even if power efficiency lags slightly behind.

The unknown pricing and availability remain the biggest question marks. If Biwin can price this drive competitively and maintain reasonable supply, it could become the go-to choice for users wanting maximum capacity without the Samsung premium.

As the SSD market continues evolving, drives like the X570 Pro demonstrate that competition at the high end remains healthy. This benefits consumers through innovation, competitive pricing, and the kind of technical achievements that push the entire industry forward.

The Biwin Black Opal X570 Pro proves that 8TB PCIe 5.0 SSDs are no longer theoretical - they're real, available, and performing well. While not perfect, it represents a compelling option for users who refuse to compromise between capacity and performance.
