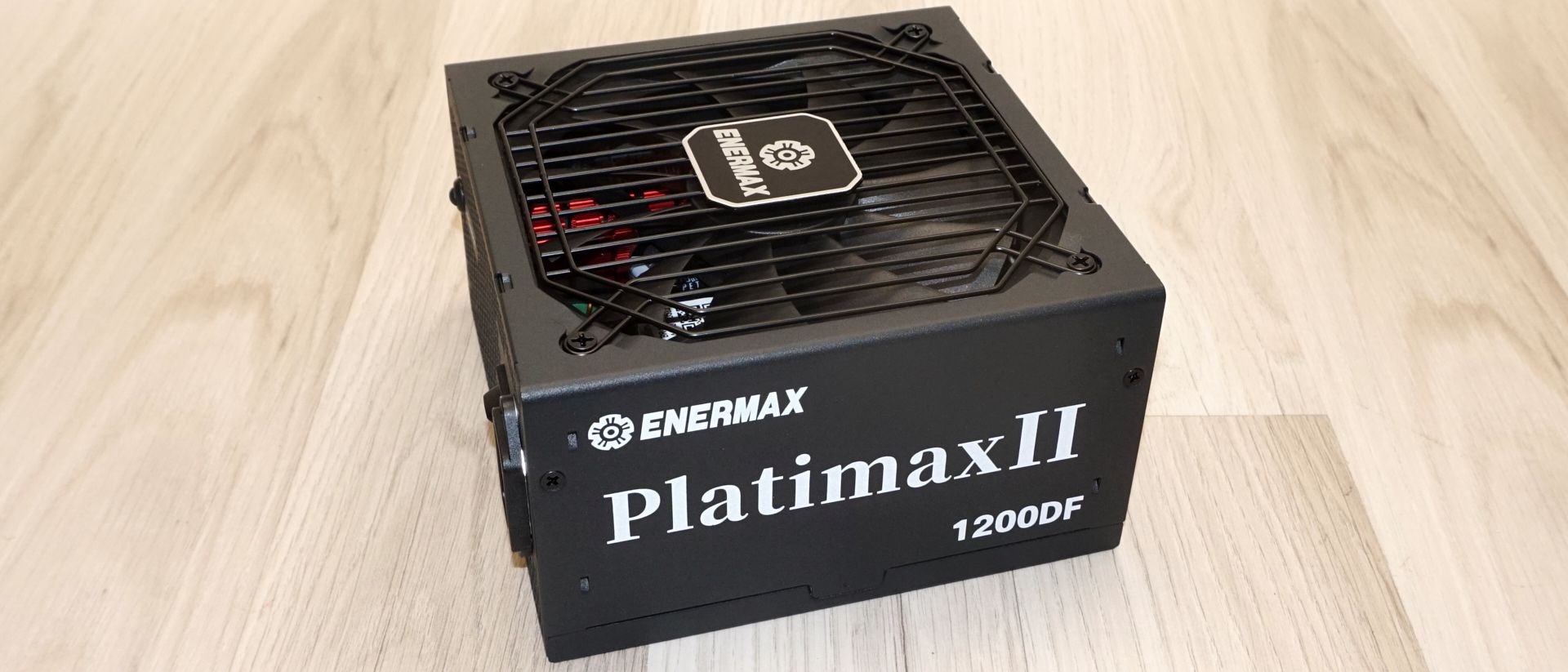

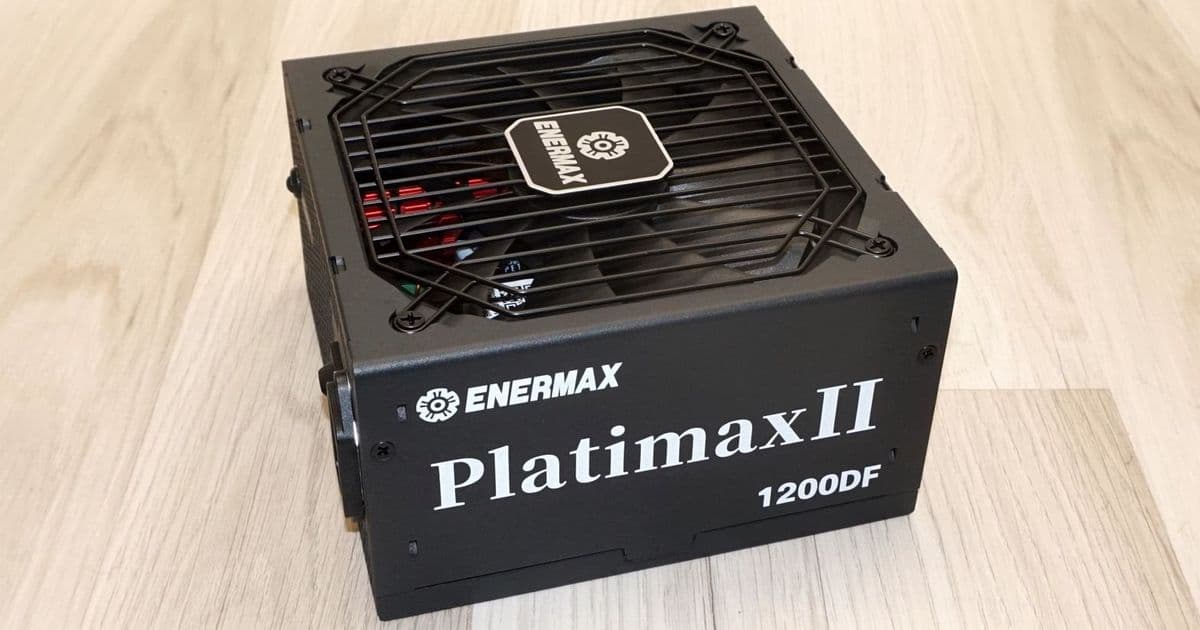

The Enermax Platimax II 1200DF delivers exceptional electrical performance with certified Platinum efficiency, tight voltage regulation, and a groundbreaking 13-year warranty, but its limited connector configuration (single 12V-2x6 and only three PCIe connectors) and 40°C ambient rating restrict its appeal to single-GPU high-end builds despite strong power density engineering.
Enermax's Platimax II 1200DF enters the competitive 1200W power supply market with a clear identity crisis: it excels where electrical purity matters most but stumbles where real-world usability begins. Priced at $230, this unit achieves what many competitors struggle with—maintaining 80 Plus Platinum efficiency across both 115VAC (91.3% average) and 230VAC (93.2% average) inputs—while its connector selection reveals a fundamental mismatch between capability and accessibility.
The electrical performance metrics tell a story of meticulous engineering. Voltage regulation holds the 12V rail within 0.4% deviation across 20-100% load, the 5V rail within 0.5%, and the 3.3V rail within 0.9%—figures that rival enthusiast-grade offerings from Seasonic or Corsair. Ripple suppression remains equally impressive, with the 12V rail peaking at 22mV (well below the 120mV ATX ceiling) and minor rails staying under 20mV. These results stem from RSY's (Shenzhen Ruishengyuan Technology) platform design, which employs four Convert CS25N50FF MOSFETs in the primary inversion stage and eight Hauyi HYG020N04 devices for synchronous rectification on the secondary side, all cooled by modest silver heatsinks.
Where the Platimax II 1200DF diverges from premium expectations is in its environmental rating and connectivity. Unlike most 1200W units targeting 50°C ambient operation, this model is rated for maximum output at just 40°C—a specification that manifests clearly in hot testing. At 45°C ambient, efficiency drops to 89.5% at 115VAC and 91.3% at 230VAC, with measurable thermal stress appearing near full load. The dual ball bearing Globe S1352512HH fan (135mm) activates earlier under heat (400W vs 550W cold threshold) and produces noticeable mechanical whine at high speeds, a trade-off for its extended lifespan tolerance.

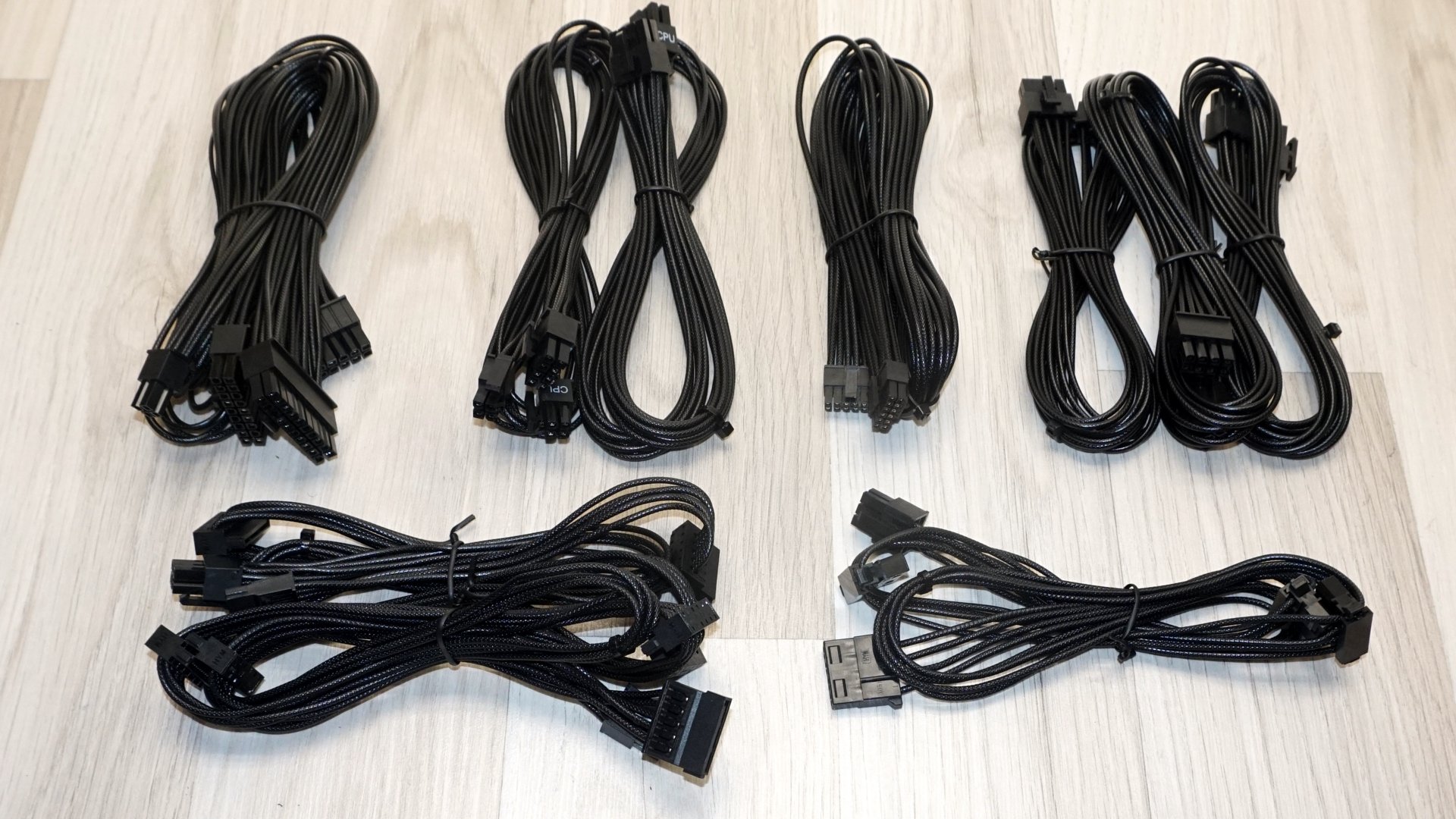

The connector configuration presents the most significant usability constraint. Despite the unit's 1200W capacity, Enermax provides only one 12V-2x6 connector for next-gen GPUs and three 6+2 pin PCIe connectors—far below what dual-GPU or multi-drive enthusiast builds require. This limitation becomes particularly glaring given the premium black, fully modular cables with per-wire shielding that would benefit from included cable combs (notably absent at this price point). The unit's compact 150mm length does reflect strong power density engineering, yet the wiring harness fails to match the electrical headroom.

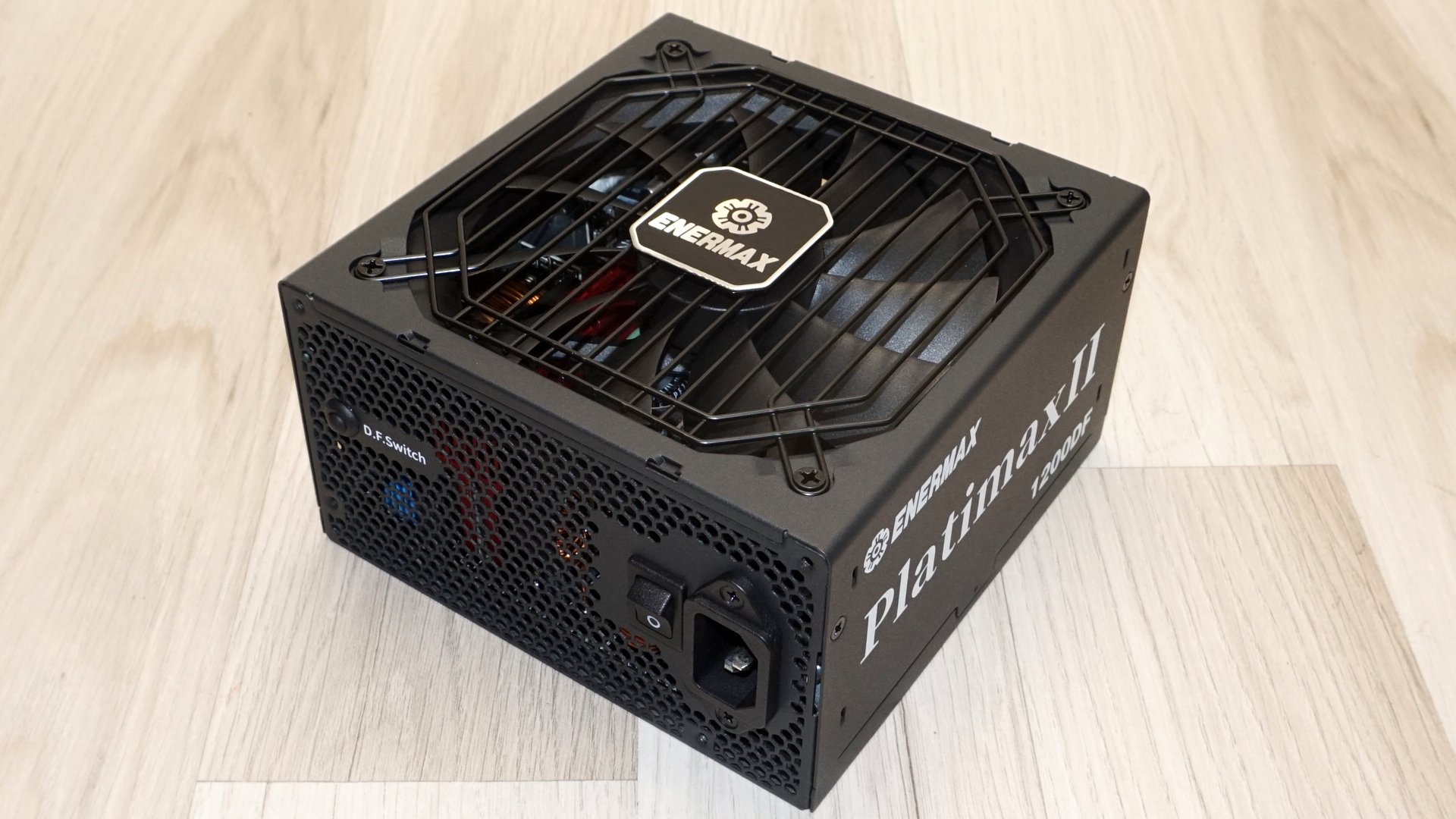

Enermax's Dust-Free reversal mode represents a thoughtful, if modest, reliability feature. The front-panel secondary switch triggers a 20-second fan reversal cycle designed to expel particulate from blades and heatsinks—a genuine concern for long-term operation in dusty environments. While not a complete solution, it addresses a real failure mode that many competitors ignore at the firmware level.
The 13-year warranty remains the Platimax II 1200DF's most compelling differentiator. In an industry where 10-year terms are considered lengthy, this commitment signals extraordinary confidence in RSY's component selection—particularly the Japanese capacitors (Rubycon, Nippon Chemi-Con) used throughout. For builders prioritizing longevity and clean power over maximum connectivity, especially in single-GPU workstations or rendering rigs, this warranty offers tangible peace of mind.
Market positioning reveals a nuanced reality. At $230, the Platimax II 1200DF competes directly with units like the Corsair RM1200x (10-year warranty, 50°C rating) and Seasonic Focus GX-1200 (12-year warranty). Its electrical performance justifies the price for purity-focused applications, but the connector limitations and lower thermal rating push it toward a niche: builders who value warranty length and ripple suppression above all else, and who operate in climate-controlled environments with modest peripheral demands. For those needing extensive PCIe connectivity or sustained operation in warmer climates, alternatives remain necessary despite the Platimax II's impressive internal engineering.
