JEYI's ArcherX Adapter Flattens PCIe Storage, Solving GPU Blockage Issues

Modern PC builds often face a frustrating storage dilemma: massive graphics cards block access to M.2 slots and PCIe expansion slots, leaving users with limited options for adding storage. JEYI, a Chinese accessories manufacturer, has developed an elegant solution with their new ArcherX adapter that lays completely flush with the motherboard, unlocking previously unusable PCIe slots.

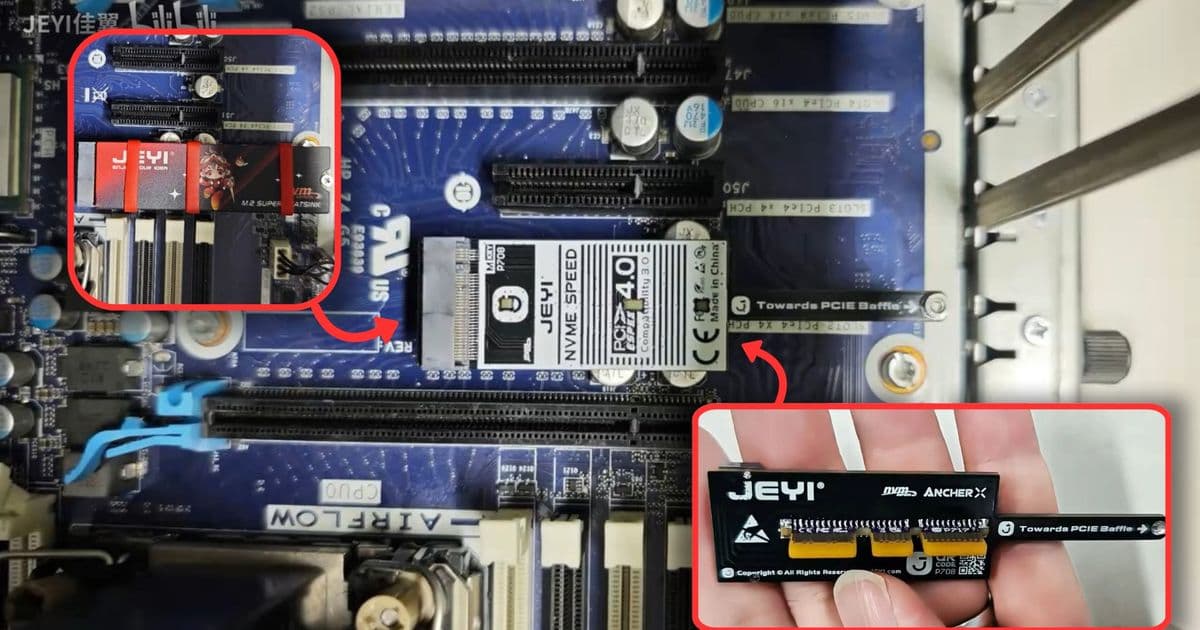

(Image credit: JEYI / Future)

Most add-in cards (AICs) protrude vertically from motherboards, taking up valuable space inside PC cases. When graphics cards span multiple slots, they can completely block neighboring PCIe slots, making it impossible to install traditional adapters even when physical space exists. JEYI's flat design solves this by positioning the M.2 slot parallel to the motherboard, similar to native M.2 slots found directly on boards.

The ArcherX adapter comes in two variants: PCIe 4.0 x1 and PCIe 4.0 x4. Both versions maintain backward compatibility with PCIe 3.0, ensuring broad compatibility across different systems. The company has also teased a PCIe 5.0 version in development, anticipating future platform requirements.

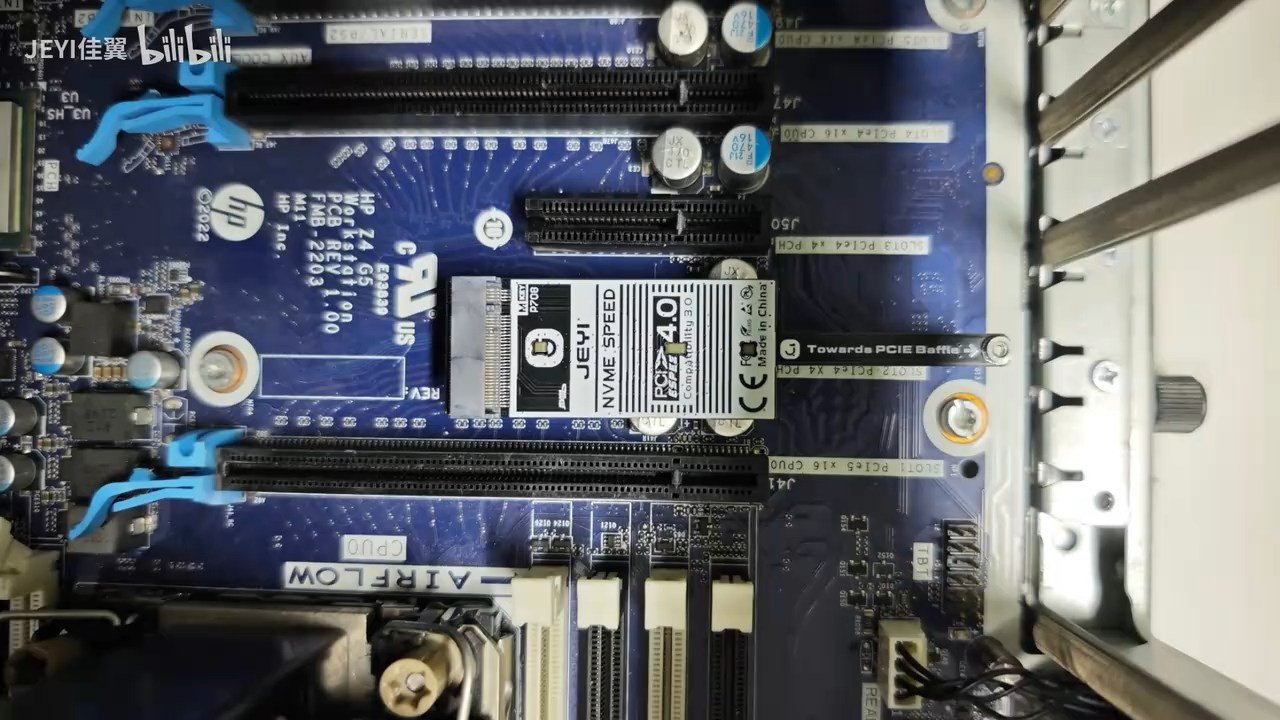

(A better, top-down look at how the adapter would appear inserted in the PCIe slot(Image credit: JEYI))

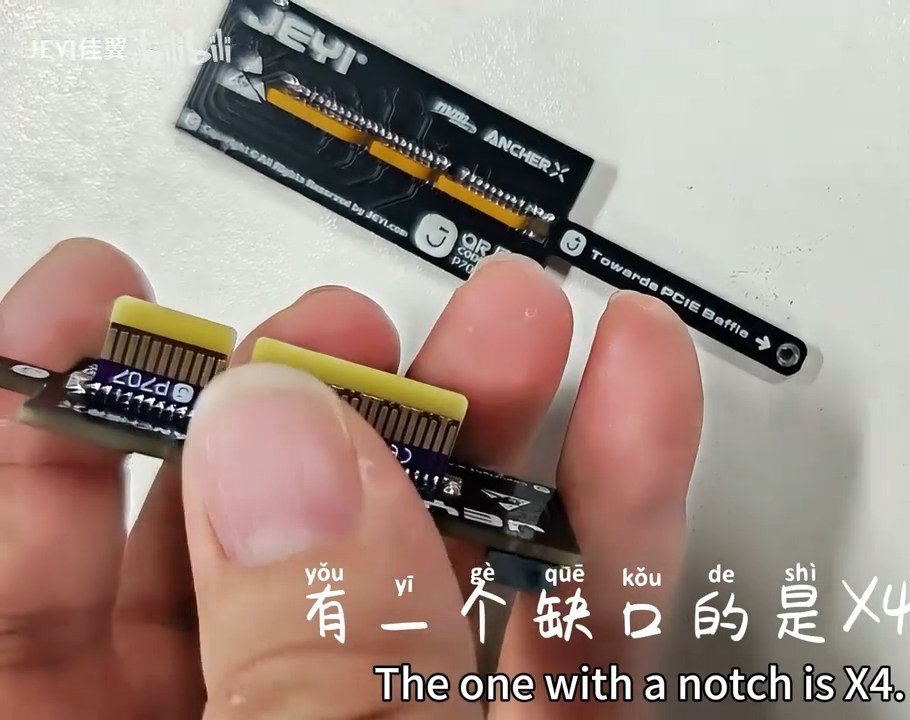

The two different variants of the ArcherX adapter(Image credit: JEYI)

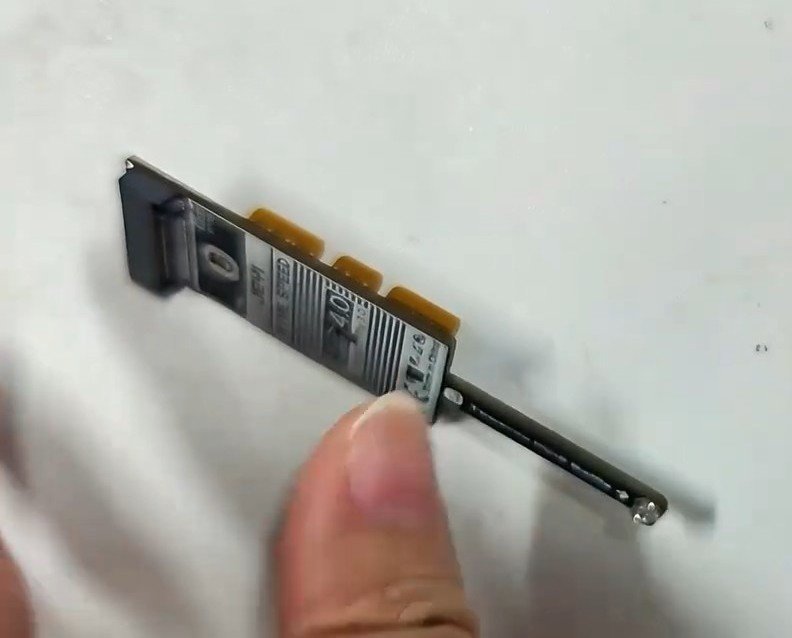

The adapter's construction involves soldering two printed circuit boards together. One PCB houses the PCIe connector that interfaces with the motherboard, while the other contains the M.2 slot. A long, thin mounting bar extends from the assembly with a screw mount at the end, designed specifically for full-size 2280 SSDs. Despite its slim profile, JEYI claims the adapter maintains excellent rigidity.

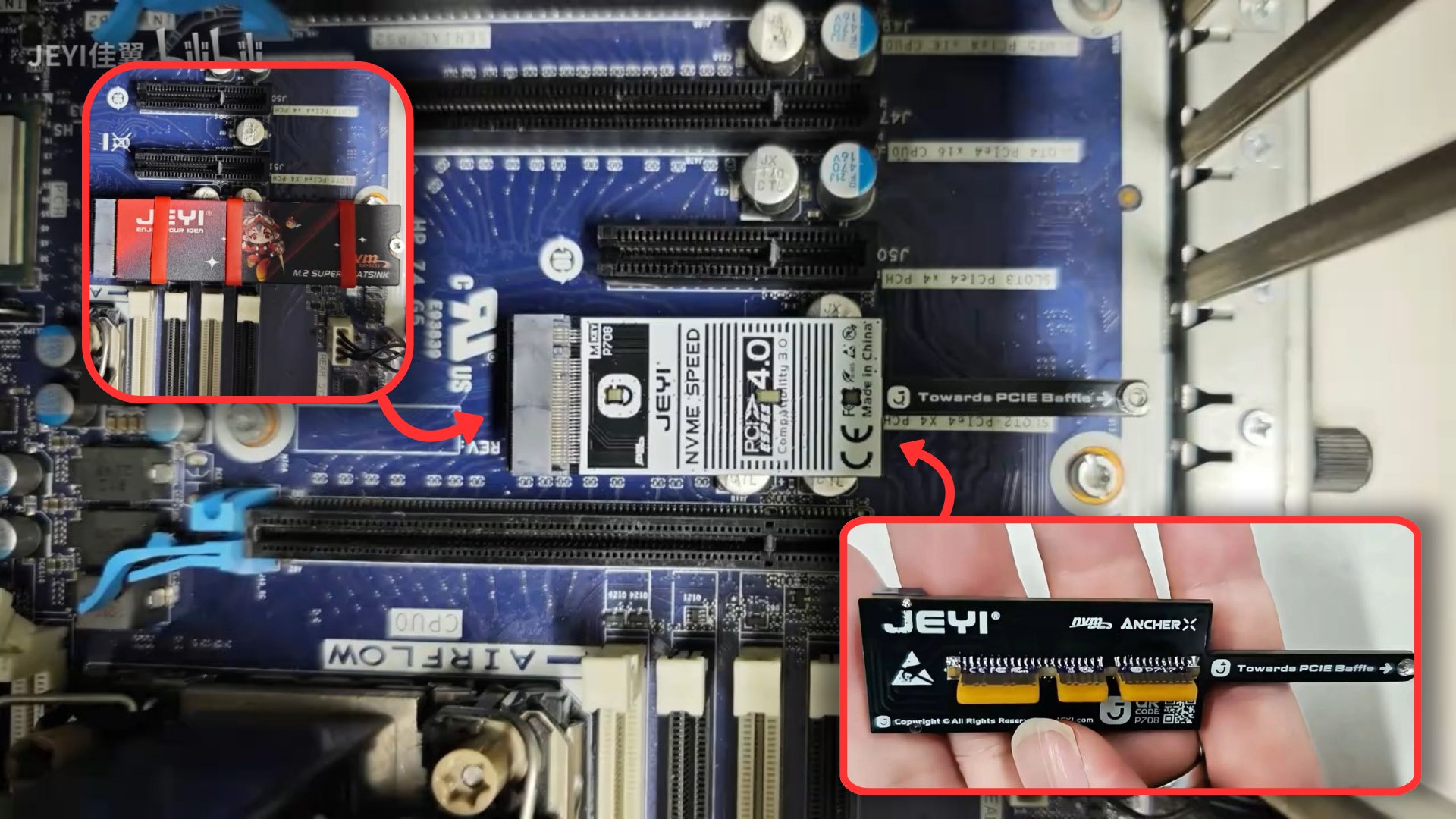

(JEYI "ArcherX" flat PCIe to M.2 adapter in all its glory(Image credit: JEYI))

The company deliberately minimized the adapter's footprint to prevent interference with surrounding components. This compact design philosophy ensures the adapter can fit in tight spaces where traditional perpendicular cards would be impossible to install.

Pricing and availability details remain unannounced, but market context suggests the ArcherX will likely fall in the $20-30 range. This pricing aligns with JEYI's reputation for budget-oriented accessories and the generally low cost of PCIe to M.2 adapters in the current market.

For users struggling with storage expansion in GPU-blocked systems, the ArcherX represents a practical solution that doesn't compromise on performance. The PCIe 4.0 x4 variant, in particular, can deliver speeds up to 7,880 MB/s, matching native M.2 performance while solving the physical installation challenge.

This innovation addresses a growing pain point in PC building as graphics cards continue to increase in size. With high-end GPUs now commonly occupying three or even four slots, traditional expansion options become increasingly limited. JEYI's flush-mount approach effectively doubles the usable expansion capacity in affected systems.

The adapter's release timing is particularly relevant given current market conditions. With ongoing component shortages affecting various PC parts, maximizing the utility of existing hardware becomes increasingly important. The ArcherX allows users to add storage without requiring motherboard replacement or GPU repositioning.

For enthusiasts seeking similar solutions, JEYI also produces a platypus adapter that adds two M.2 slots, though that design follows a more traditional perpendicular configuration. The ArcherX's unique flat profile sets it apart in the market for PCIe storage expansion solutions.

As PC cases and component layouts continue evolving, innovative solutions like the ArcherX demonstrate how manufacturers can address emerging challenges through creative engineering rather than simply following established form factors.
