Nibble: A Minimalist Compiler Generating LLVM IR Without External Dependencies

The nibble project presents an interesting approach to compiler construction—a C-like systems programming language implemented in just 3000 lines of C that generates LLVM IR without relying on external dependencies or heap allocations. This minimalist implementation offers insights into compiler design while demonstrating practical capabilities through several graphical demos.

Technical Implementation

At its core, nibble demonstrates that a functional compiler can be built with minimal dependencies while still supporting several language features expected in systems programming languages. The implementation includes:

• Control structures: Support for defer, recursion, branching, and loops
• Data types: Integer, floating-point, and boolean types
• Type system: Structs (as named types), pointers, and function pointers
• Type checking: Basic type verification with reasonable error messages
• C interoperability: Via generic pointers
• Operators: GLSL-like struct operators

The compiler employs a top-down, single-pass compilation strategy. This design choice simplifies the front-end architecture at the cost of certain optimization opportunities. The author explicitly allows allocas even within loops, which creates an interesting tension between simplicity and optimization.

Practical Demonstrations

The project includes four graphical demos that showcase the language's practical capabilities:

1. Multithreaded software renditions of popular shader-toy demos - These demonstrate the language's ability to handle parallel computation and graphics programming
2. Red-black tree implementation - Shows the language's capability for complex data structure implementation
3. Basic game programming setup - Illustrates the language's suitability for interactive applications

To run these demos, one needs SDL2 and Clang installed, then simply running make will compile the main.c file to produce the nibble compiler, which in turn compiles and executes the graphical demonstrations.

Technical Trade-offs

The most interesting aspect of nibble is its design philosophy and the trade-offs it represents. By allowing allocas within loops, the compiler maintains a simple front-end design that improves readability. However, this approach creates a significant limitation: stack overflows occur with certain Clang back-end optimizations.

The author notes: "I was under the impression clang's back-end optimizer would hoist all allocas to a function's top level, but so we learn in life." This reveals a valuable lesson about compiler optimization assumptions and the importance of understanding how back-end optimizers actually work.

The project could potentially address this limitation using LLVM's stacksave/stackrestore functionality, though the author considers the compiler "momentarily complete" for their LLVM exploration purposes.

Significance

Nibble serves as both a practical compiler implementation and an educational resource. For those interested in compiler construction, it demonstrates:

• How to build a functional compiler with minimal dependencies
• The relationship between front-end design choices and back-end optimization opportunities
• Practical implementation of language features in a real-world context
• The challenges of integrating with LLVM's optimization pipeline

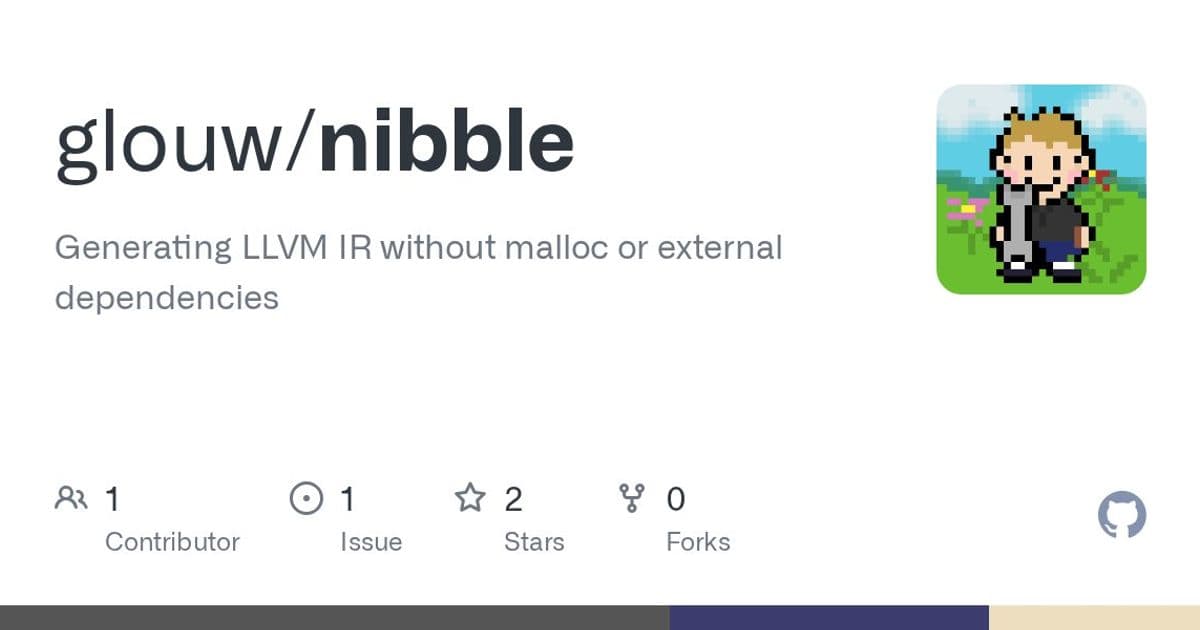

The project's GitHub repository (https://github.com/glouw/nibble) contains all the source code and documentation for those wishing to study or extend the implementation.

Limitations

While nibble successfully demonstrates its core objectives, it has several limitations:

• The single-pass compilation approach restricts certain optimization opportunities
• The alloca-in-loops design causes stack overflows with common Clang optimizations
• The language appears to focus on demonstration rather than production readiness
• Limited error recovery and diagnostics compared to mature compilers

Despite these limitations, nibble achieves its goal of demonstrating LLVM IR generation without external dependencies or heap allocations in a concise, readable implementation. The project stands as a valuable contribution to the compiler education landscape and offers insights into the practical challenges of compiler construction.
