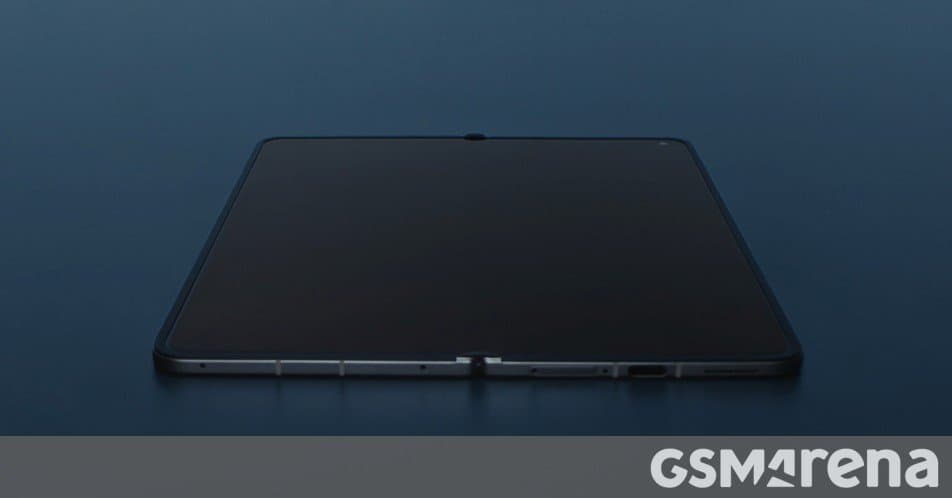

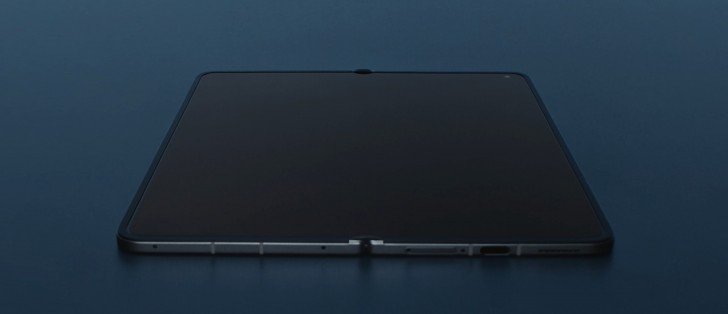

Oppo Details Find N6's Impressive Crease-Free Display

One week before the official launch, Oppo has pulled back the curtain on the engineering that makes the Find N6's display remarkably crease-free. The company claims to have achieved the first "zero-feel crease" in a foldable device through a combination of hardware innovations that address both the hinge mechanism and the display material itself.

The hinge is where the magic begins. Oppo's new 2nd-generation Titanium Flexion Hinge represents a significant evolution from previous designs. What makes this hinge special is its construction process: Oppo starts with precise laser scanning to create high-fidelity models of each surface, then employs liquid 3D printing using photopolymer resin droplets to fill microscopic irregularities. Each layer is instantly solidified with UV light, creating a structure that's both precise and durable.

The hinge and wing plates are crafted from Grade-5 titanium alloy, known for its strength-to-weight ratio and corrosion resistance. The design features a wider waterdrop profile that increases the folding radius while reducing stress on the display - a critical factor in preventing creasing over time. Oppo has also incorporated an updated carbon fiber support plate to further enhance the structure's rigidity.

But the hinge alone isn't enough. The display material itself required innovation to combat "creep" - the gradual shifting of internal layers that leads to visible creasing after extended use. Oppo's solution is the Auto-Smoothing Flex Glass, which the company claims is 50% thicker than standard Ultra-Thin Glass (UTG). This increased thickness provides superior elasticity and shape recovery, preventing deformations that would otherwise lead to permanent creasing.

The effectiveness of these combined technologies is backed by testing with TÜV Rheinland. According to Oppo's data, the Find N6's hinge and display combination reduces long-term crease depth by 82% compared to the Find N5. Perhaps more impressively, Oppo claims the display remains perfectly flat with no visible crease even after over 600,000 folds - a durability benchmark that far exceeds typical daily usage over several years.

This engineering approach addresses one of the most persistent criticisms of foldable phones: the inevitable crease that develops along the fold line. By tackling both the mechanical stress points (through the hinge design) and the material properties (through the thicker, more elastic glass), Oppo appears to have made significant progress toward eliminating this compromise.

The Find N6 is set to launch next week, and these technical details suggest Oppo is positioning it as a premium foldable that doesn't force users to accept the visual and tactile compromises that have characterized earlier generations of foldable devices. Whether real-world usage matches these impressive specifications remains to be seen, but the engineering behind the Find N6 represents a notable step forward in foldable display technology.
