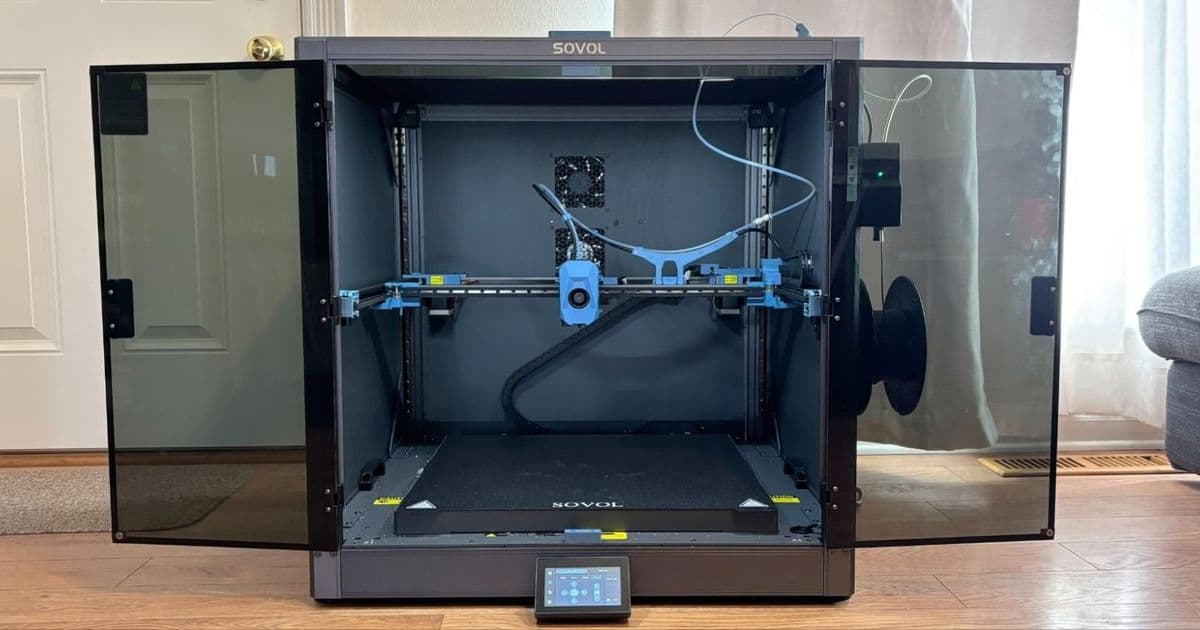

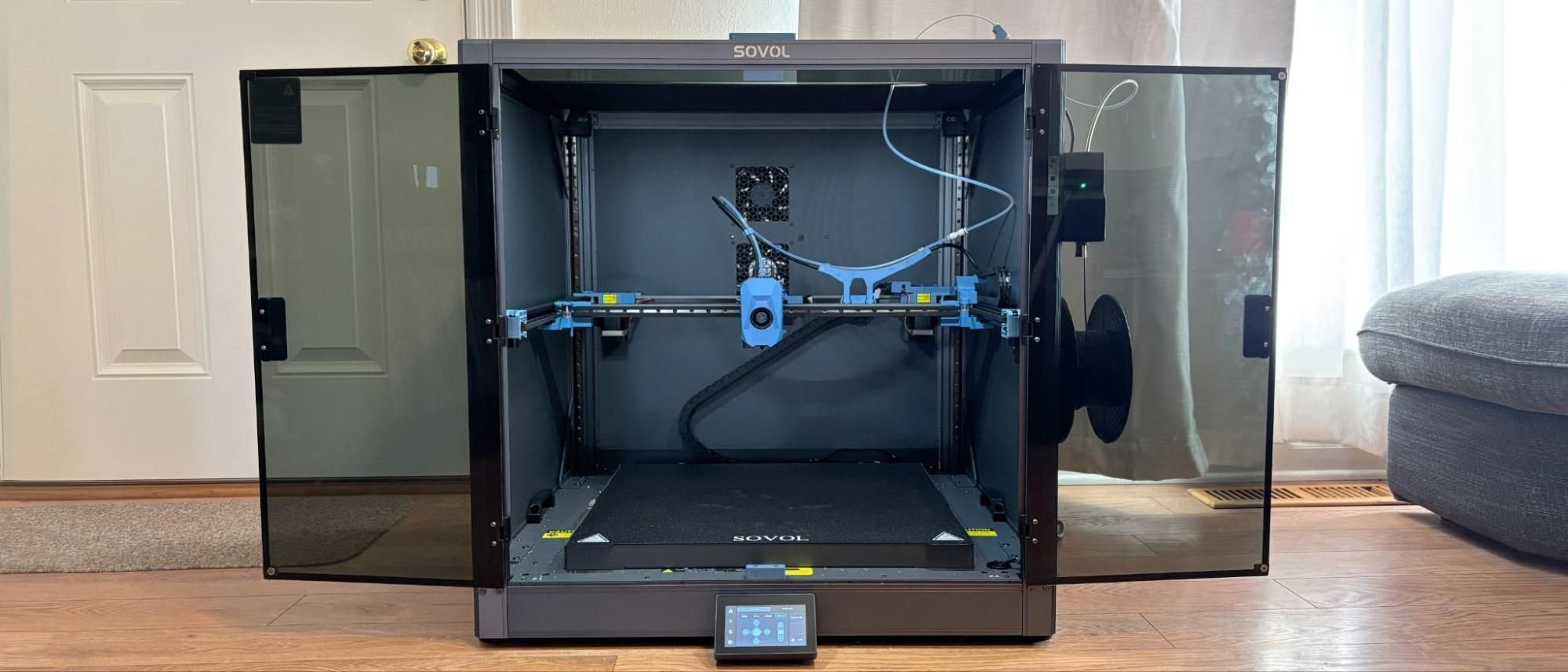

Sovol SV08 Max: A Large-Format Core XY Powerhouse for Professional 3D Printing

Market Introduction

The Sovol SV08 Max enters the large-format 3D printing market as a formidable contender, positioning itself between smaller multi-color printers and significantly more expensive industrial machines. With a starting price of $1,099 for the open-frame version and $1,298 with the optional enclosure, the SV08 Max targets professionals and serious hobbyists who require substantial build volume without the premium pricing of competitors like Elegoo's OrangeStorm Giga, which retails for $2,399.

Technical Specifications

The Sovol SV08 Max distinguishes itself through several key technical specifications:

• Build Volume: 500 x 500 x 500 mm (19.6 x 19.6 x 19.6 inches)
• Material Compatibility: PLA/PETG/TPU/ABS/ASA/PC/PA (up to 300°C)
• Extruder Type: Direct Drive with auxiliary feeder
• Nozzle: 0.4 mm hardened steel
• Build Platform: Double-sided PEI spring steel sheet
• Bed Leveling: Eddy Current Automatic (scans in seconds)
• Connectivity: USB, Ethernet, Wi-Fi
• Interface: 4.3-inch LED touch screen
• Machine Footprint: 700 x 710 x 750 mm
• Machine Weight: 29.5 kg (65.03 lbs) without enclosure
• Release Date: June 3, 2025

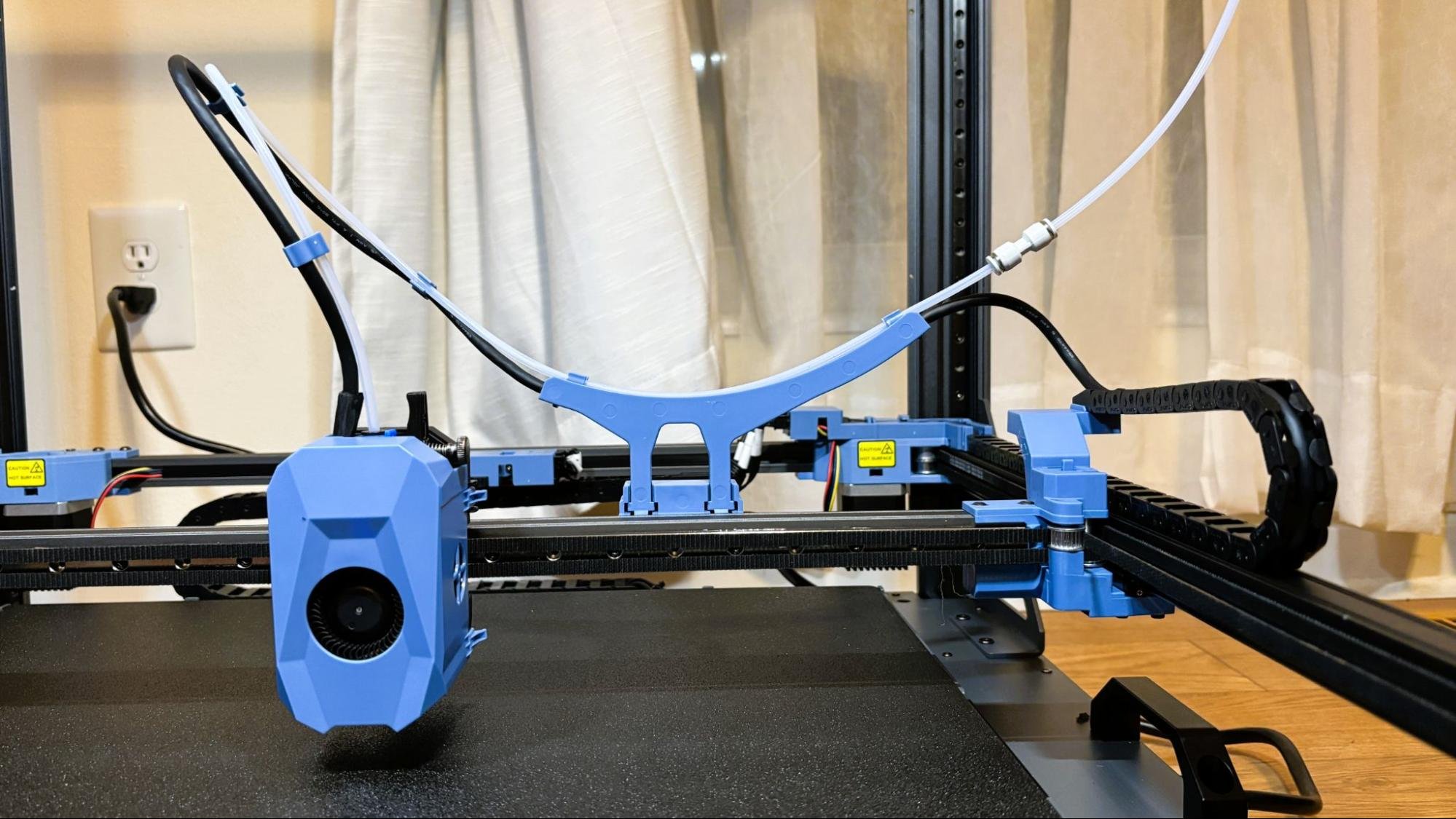

The printer employs a Core XY design with linear rails on all axes, ensuring stability and precision at its scale. The Z-axis gantry utilizes four stepper motors with belts rather than screws, providing reliable movement while preventing crashes during power loss.

Advanced Features and Design

Auxiliary Filament System

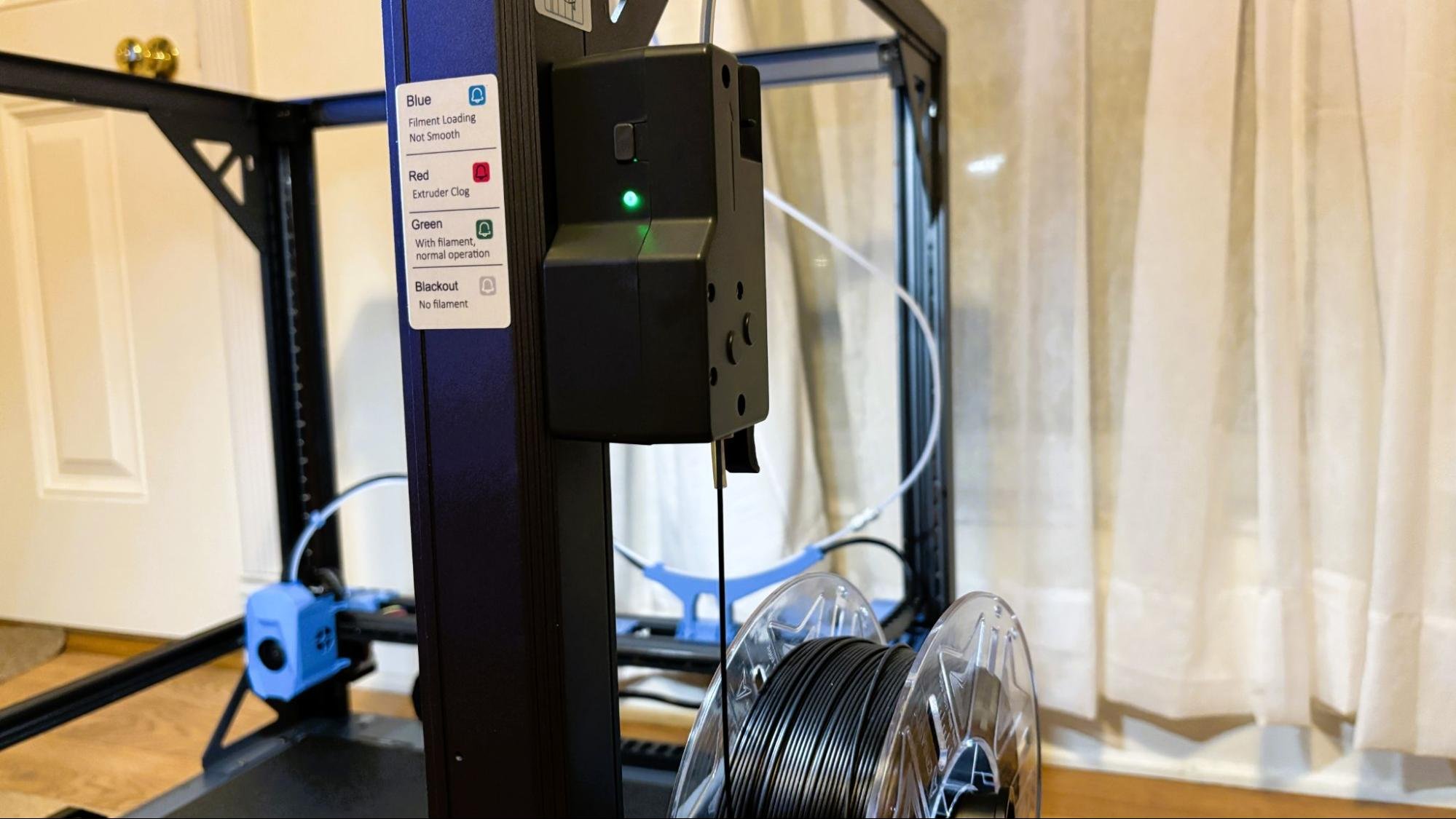

The SV08 Max addresses one of the most significant challenges in large-format printing: filament delivery over long distances. With a nearly five-foot Bowden tube running from the side-mounted spool to the extruder, Sovol implements an auxiliary feeder mechanism that:

• Features a spring-loaded buffer that contracts and refills as the extruder consumes filament
• Includes plastic guides to prevent filament kinking
• Provides controlled loading and unloading, though at a slower pace

However, this system has limitations. The filament runout sensor located in the auxiliary feeder creates a delay between filament depletion and printer response. Users must manually extract filament from the Bowden tube and either manually feed new material or wait for the auxiliary feeder to slowly advance replacement filament.

Eddy Current Bed Leveling

The printer employs an eddy current sensor for automatic bed leveling, a technology that scans the bed without physical contact. This system:

• Scans only the print area, reducing time
• Completes the process in seconds
• Produces consistent bed mesh results

Despite this advanced system, the reviewer noted challenges with Z-axis offset calibration, requiring multiple attempts to achieve proper bed adhesion for certain prints.

Cooling System

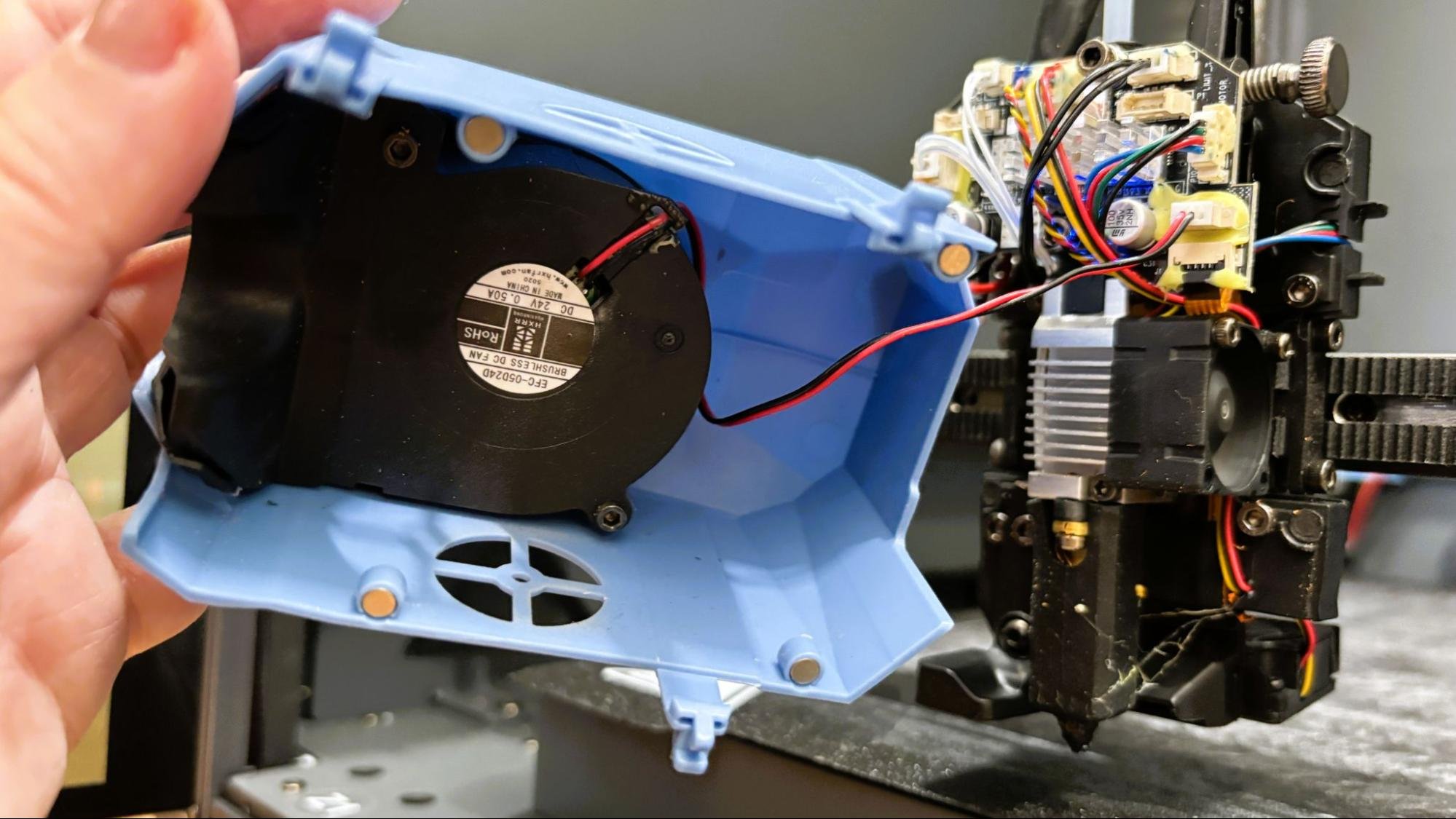

The SV08 Max incorporates a dual-fan cooling system:

• Large blower fan mounted in the toolhead cover
• Smaller blower motor mounted to the bottom of the toolhead

Together, these provide adequate cooling for various materials, though the system contributes to the printer's overall noise profile.

Assembly and Setup Experience

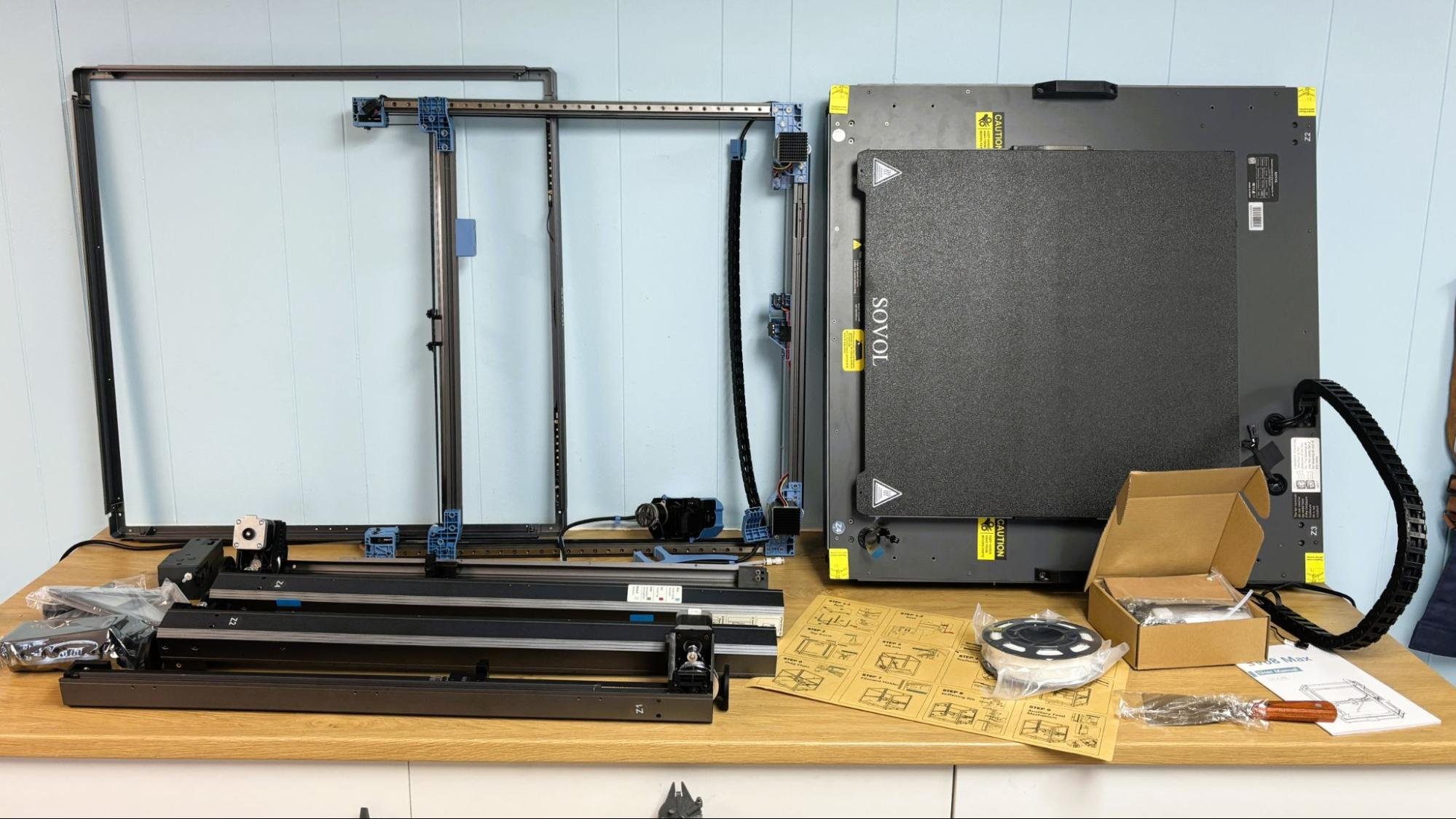

The SV08 Max arrives flat-packed and requires approximately two hours of assembly time, including the optional enclosure. The package includes:

• Well-marked parts and hardware
• Machined components with precise tolerances
• Included tool kit with hex keys and drivers
• USB drive with assembly video, manual PDF, and OrcaSlicer software
• Sample filament and spare nozzle

The assembly process follows a logical sequence, starting with the base unit and progressing to the uprights, top frame, gantry, and toolhead. The enclosure installation is straightforward, though the reviewer noted ambiguity regarding fan orientation and the need to split fan covers.

Performance Testing Results

The reviewer conducted extensive testing across various materials and print sizes:

Benchy Test (PLA)

• Duration: 10 minutes 45 seconds
• Material: Creality Black PLA
• Observations: Good quality for the printer's size

Meadowlark Performance Glider

• Scale: 100% and 250% prints
• Material: Bambu Lab translucent blue PETG
• Layer Height: 0.2 mm
• Speed: 100 mm/s
• Duration: 5 hours 22 minutes
• Results: Excellent print quality with well-printed bridged areas

Articulated Bone Dragon

• Scale: 522 links at 102% scale
• Material: Bambu Lab translucent blue PETG
• Layer Height: 0.2 mm
• Speed: 100 mm/s
• Duration: 2 days 8 hours 17 minutes
• Results: Perfect print after multiple calibration attempts

Mesh Sheet (TPU)

• Material: Inland 95A TPU
• Layer Height: 0.2 mm
• Speed: 40 mm/s
• Duration: 8+ hours
• Results: Good print quality with minimal stringing

Arch Retro Coffee Table

• Material: Prusament Galaxy Black PLA (2.5 spools)
• Layer Height: 0.28 mm
• Speed: Average 140 mm/s
• Duration: 2 days 13 hours
• Results: Perfect except for crack developed after filament runout

Twist Lock Container (ABS)

• Material: Polylite ABS from Polymaker
• Layer Height: 0.2 mm
• Speed: Average 140 mm/s
• Duration: 5 hours 6 minutes
• Results: Excellent fit and finish

Market Positioning and Competition

The Sovol SV08 Max occupies a unique position in the large-format 3D printing market:

Direct Competitors

• Kobra 3 Max: 420 x 420 x 500 mm build volume, four color units, $599 (currently on sale)
• OrangeStorm Giga: Larger than SV08 Max, $2,399
• Creality CR-M4: Bedslinger design, difficult to find

Target Audience

The printer serves several specialized markets:

• Prop Makers: Large build volume accommodates oversized props
• Cosplayers: Enables creation of large costume pieces
• Furniture Designers: Capable of printing functional furniture components
• Prototyping Professionals: Suitable for large-scale prototypes

Value Proposition

The SV08 Max offers several value advantages:

1. Build Volume: Among the largest available in consumer-grade printers
2. Material Versatility: Handles everything from standard PLA to high-temperature PC and PA
3. Speed: Maintains reasonable print speeds despite its size
4. Klipper Integration: Runs vanilla Klipper firmware, allowing advanced users to optimize performance

Limitations and Considerations

Despite its capabilities, the SV08 Max presents several challenges:

1. Physical Size: At 700 x 710 x 750 mm footprint, requires substantial dedicated space
2. Weight: 29.5 kg without enclosure, nearly 100 kg with enclosure
3. Noise: Operates loudly, with enclosure providing no sound dampening
4. Software Quirks: Some inconsistencies in firmware and software
5. Assembly Complexity: Requires significant assembly time and effort
6. Mobility: May require disassembly to move through standard doorways

Conclusion

The Sovol SV08 Max represents a significant achievement in large-format 3D printing, offering an impressive combination of size, speed, and material versatility. While not without its challenges, particularly in terms of size and required expertise, it fills a valuable niche between smaller multi-color printers and prohibitively expensive industrial machines.

For professionals and serious hobbyists who regularly print large objects and need material flexibility beyond PLA and PETG, the SV08 Max offers compelling value at its price point. Its Core XY mechanics, linear rails, and auxiliary filament system provide the stability and reliability needed for serious large-format work.

The printer's success ultimately depends on the user's specific needs and capabilities. Those with the space, patience, and technical understanding to optimize its performance will find it an exceptional tool for oversized projects, while casual users may find the size, complexity, and price point prohibitive.
