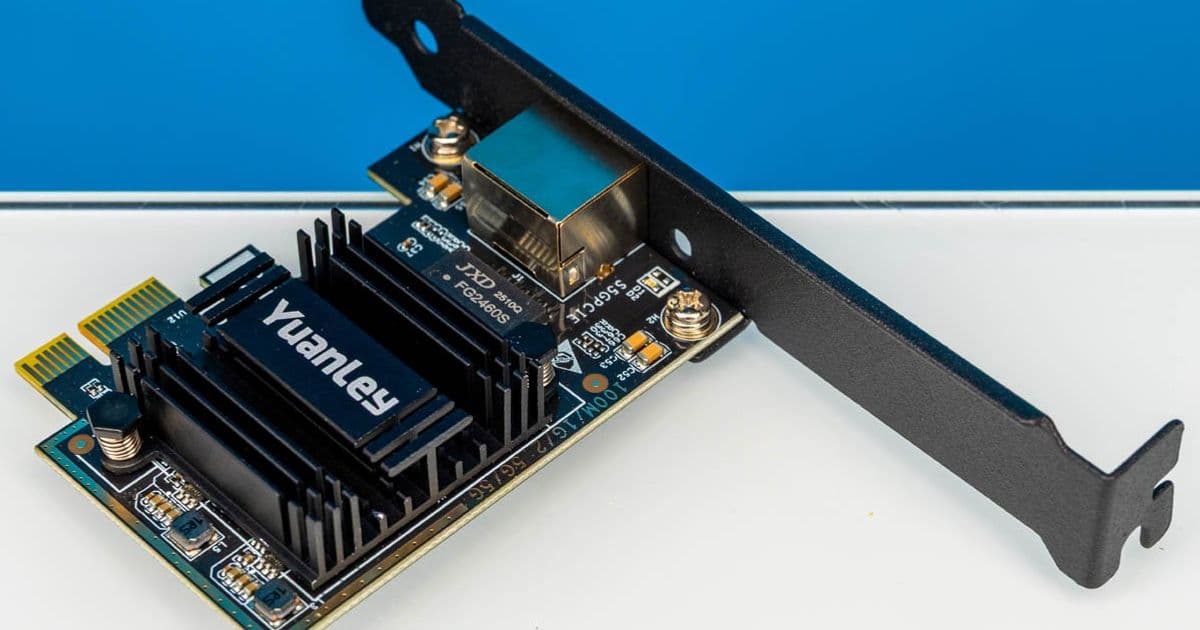

The YuanLey 5GbE PCIe adapter offers an inexpensive way to add high-speed networking to systems, though its basic build quality and generic packaging reflect its budget positioning.
The YuanLey 5GbE PCIe adapter represents a budget-friendly option for adding high-speed networking capabilities to systems, featuring the Realtek RTL8126 NIC chip on a compact PCIe Gen3 x1 form factor.
Hardware Overview

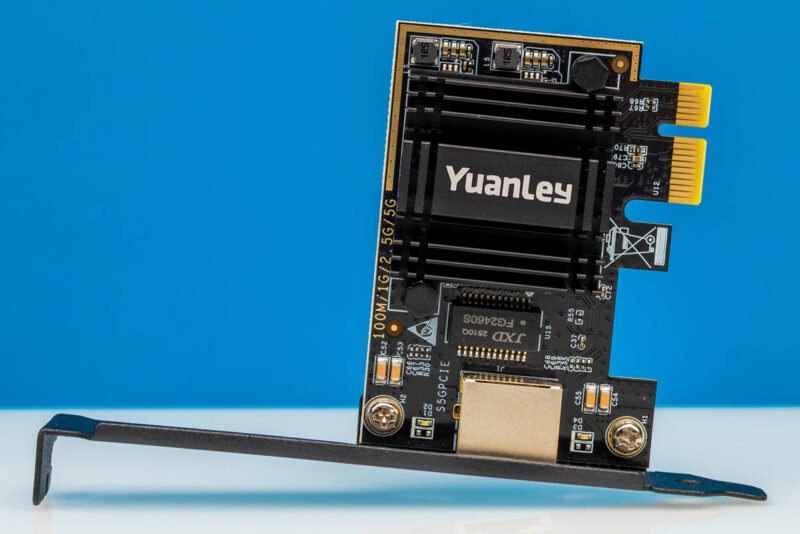

The card itself is low profile and barely longer than the PCIe Gen3 x1 card slot, making it easy to install in systems where space is at a premium. The design philosophy here is clearly "functional and cheap" rather than premium, which is reflected in both the build quality and the generic packaging.

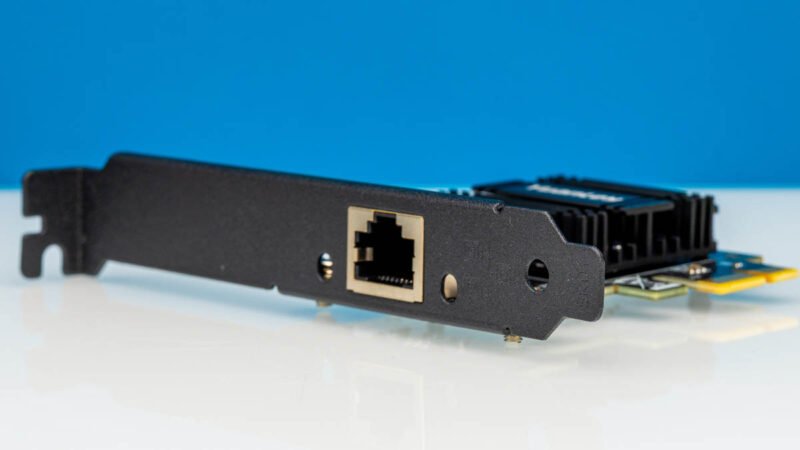

The rear I/O bracket features a single port slot with holes for status LEDs. However, the status LED implementation is notably basic - not what I would consider "nice," but rather functional in the most minimal sense.

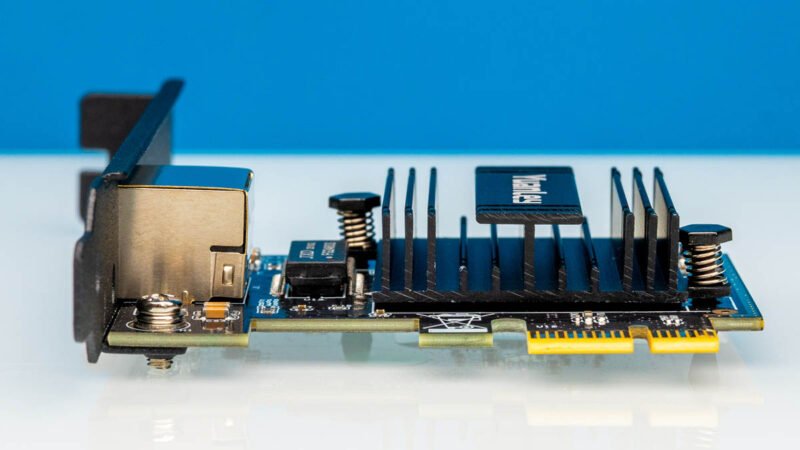

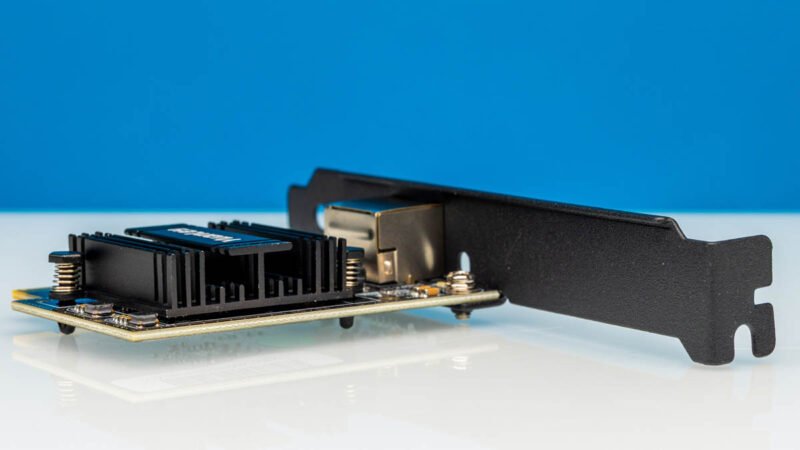

One interesting design choice is the heatsink orientation. Unlike many network cards that orient airflow front-to-back, this heatsink is configured for up-and-down airflow. This could be beneficial in certain case orientations but may be less optimal in traditional desktop setups.
The compact size is definitely a strength. With a PCIe Gen3 x1 slot and such a small footprint, installation is straightforward and doesn't require significant space clearance. This makes the card particularly suitable for small form factor builds or systems where PCIe slots are at a premium.
The card includes a low-profile bracket in the package, adding versatility for different case types. Under the heatsink, we find the Realtek RTL8126 NIC chip, which is the heart of this adapter's performance capabilities.
Performance Testing
After installation, driver support depends on your operating system version. These cards were released in 2023, with wider availability starting in 2024. For most modern operating systems, driver support is improving, but you may need to search for your specific OS and "RTL8126" to confirm compatibility.
{{IMAGE:6}}
Using iperf3 for testing, the performance was nearly identical to other Realtek RTL8126 adapters we've tested in this series. This consistency is actually a positive - you know exactly what you're getting with this chipset.
Market Position and Recommendations
Priced at $38 during our testing period, this card sits in a competitive segment. We would normally lean toward the BrosTrend option, which we found to feel slightly more premium while sometimes being cheaper - though these differences are often marginal.
What we've learned through this 5GbE NIC series is that the BrosTrend tends to be the nicest option and occasionally the cheapest. However, the differences between various RTL8126-based cards are minimal enough that purchase decisions often come down to price and availability.
A key insight: if you're considering a 2.5GbE adapter and have a PCIe Gen3 x1 slot available, spending $13-16 more for an RTL8126-based 5GbE NIC provides valuable future-proofing. The additional headroom can be worthwhile even if you don't immediately need the extra speed.
Final Assessment
The YuanLey 5GbE adapter works adequately for its intended purpose. The build quality reflects its budget positioning, but the performance is consistent with expectations for the Realtek RTL8126 chipset. For most users, the recommendation would be to purchase based on current pricing rather than brand preference, as the underlying technology is essentially identical across different manufacturers using this chip.
