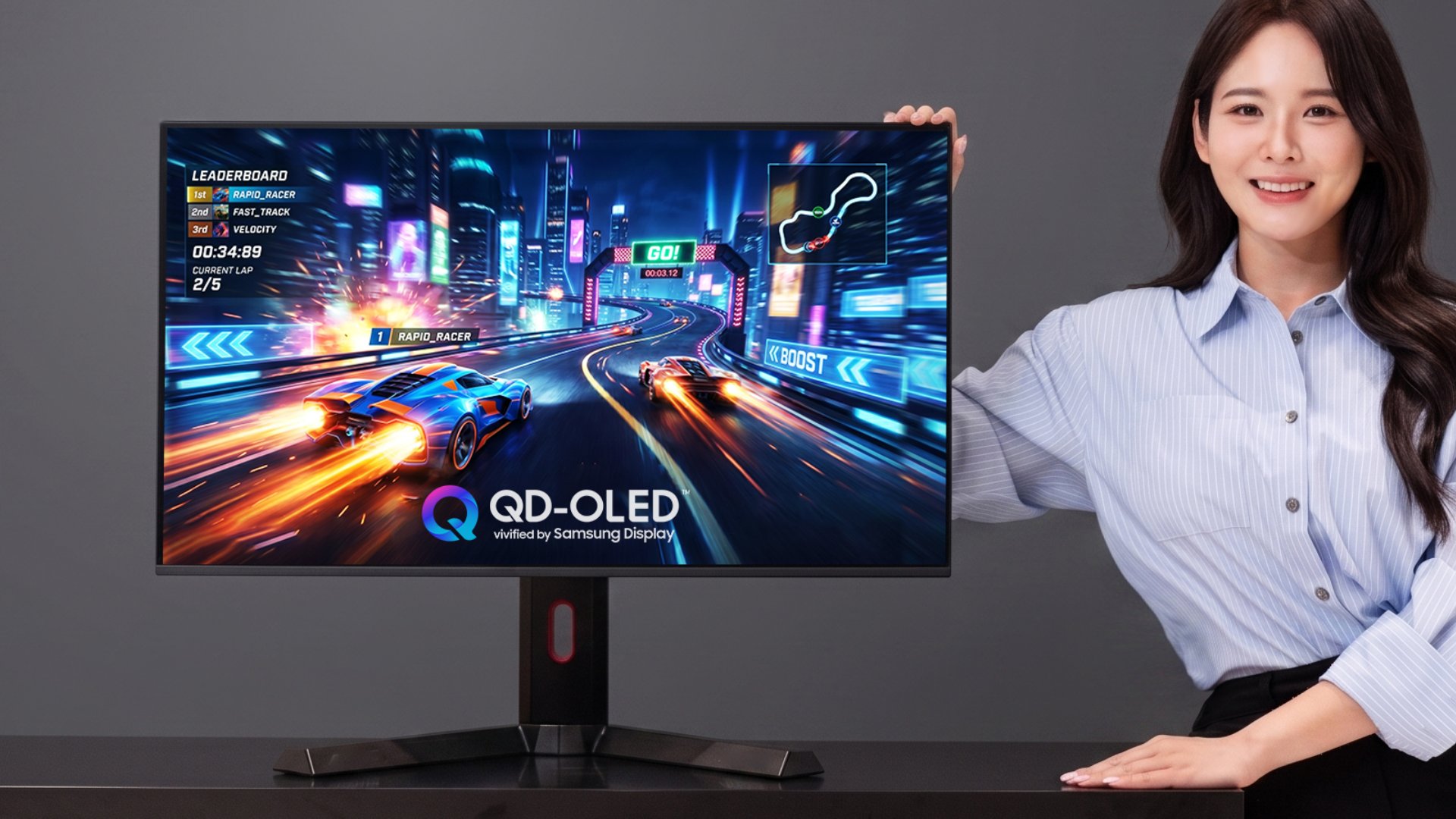

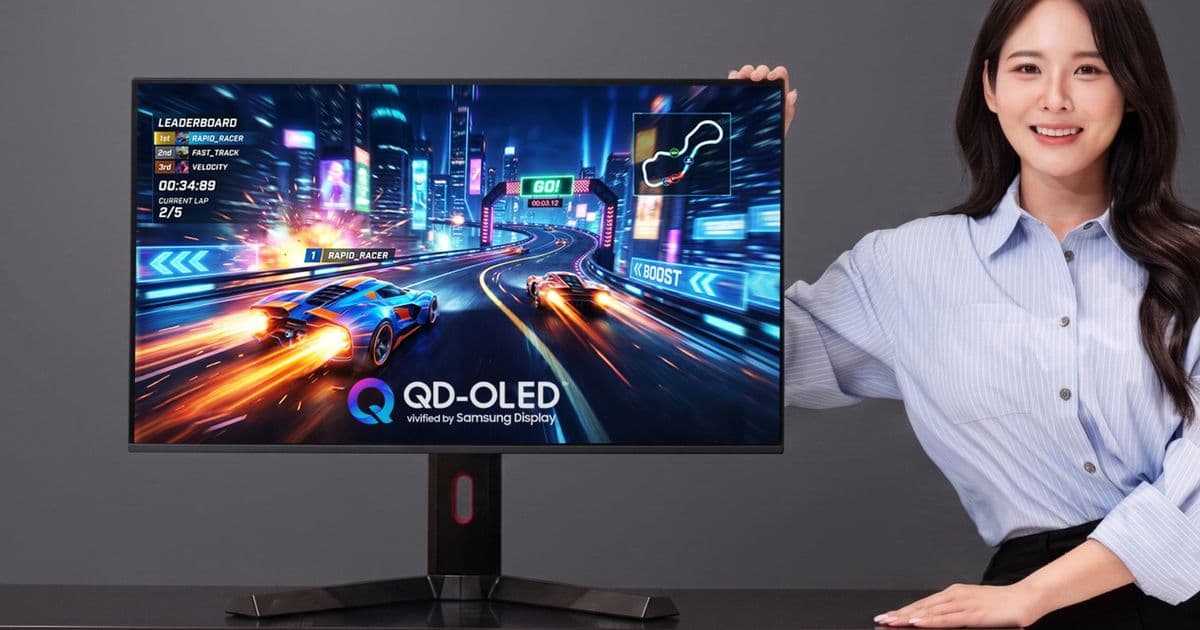

Samsung Display Unveils 360 Hz 4K QD‑OLED Panel with Dual‑Mode 680 Hz FHD Support

Samsung Display is pushing the envelope of refresh‑rate engineering with a new 31.5‑inch QD‑OLED panel that can sustain 360 Hz at native 4K (3840 × 2160). The company will showcase the first silicon samples at Computex 2026 and plans volume production in the second half of the year. Ten OEMs have already signaled intent to integrate the panel into upcoming gaming and professional monitors.

---

Technical specifications

Parameter	Value
Resolution	3840 × 2160 (native)
Refresh rate (native)	360 Hz
Dual‑Mode (FHD)	1080 p × 1920 p @ 680 Hz
Panel type	QD‑OLED with V‑stripe sub‑pixel arrangement
Brightness	600 nits (VESA DisplayHDR True Black 600)
Black level	≤ 0.0005 nits
Color gamut	100 % DCI‑P3, 95 % Adobe RGB
Response time	< 0.5 ms gray‑to‑gray
Interface	Dual‑link DisplayPort 2.1, HDMI 2.1 (up to 48 Gbps)
Power consumption	120 W @ 360 Hz, 85 W @ 680 Hz (FHD)

How the 360 Hz figure is achieved

Traditional OLED drivers top out around 240 Hz because the thin‑film transistor (TFT) backplane and the organic emitter’s drive circuitry cannot shift pixels fast enough without incurring thermal stress. Samsung’s engineering team tackled three bottlenecks:

1. High‑speed LTPS backplane – The low‑temperature polysilicon (LTPS) TFTs have been re‑engineered with a 0.9 µm gate length, reducing channel resistance by roughly 30 % and allowing a 3× higher switching frequency.
2. Optimized data lane architecture – By moving from a 4‑lane to an 8‑lane DisplayPort 2.1 configuration, the panel can push 48 Gbps of pixel data, enough to carry 3840 × 2160 × 360 Hz × 24‑bit color without compression.
3. Dynamic voltage scaling – The driver IC now ramps voltage only for active rows, cutting average power draw and keeping junction temperature under 85 °C even at full 360 Hz.

The Dual‑Mode switch works by re‑programming the internal scaler to output a 1080p frame buffer while still using the same 8‑lane link. Because the pixel count drops from 8.3 M to 2.1 M, the same bandwidth can be repurposed for a 680 Hz refresh, effectively doubling the temporal resolution for competitive gamers who prefer ultra‑low input lag.

Image quality upgrades

• V‑stripe sub‑pixel layout – Unlike the conventional RGB stripe, the V‑stripe arranges sub‑pixels in a chevron pattern, reducing perceived chromatic blur and sharpening text at high motion speeds. Independent measurements show a 12 % increase in Modulation Transfer Function (MTF) at 30 lp/mm compared with a standard OLED panel.
• DisplayHDR True Black 600 – The panel reaches 600 nits peak brightness while maintaining a black level of 0.0005 nits, delivering a contrast ratio in excess of 1,200,000 : 1. This is a significant step up from the 400 nit HDR10+ panels that dominate the current high‑end market.
• Color fidelity – Quantum‑dot color conversion layers push the DCI‑P3 coverage to 100 % and keep ΔE<2 across the gamut, which is essential for color‑critical work such as video grading.

---

Market implications

Supply‑chain outlook

Samsung plans to start mass production in H2 2026 using its newly built 6‑inch QD‑OLED line at the Giheung fab. The fab’s yield for 4K QD‑OLED has stabilized around 92 % after a year of ramp‑up, suggesting that the 360 Hz panel can be delivered at volume without a steep price penalty. However, the need for an 8‑lane DisplayPort 2.1 interface means that OEMs must redesign motherboard trace routing and power delivery, potentially adding a $30‑$50 cost per unit.

Competitive positioning

The only other manufacturers that have demonstrated > 240 Hz at 4K are niche Chinese OLED makers, and those devices are limited to 240 Hz with heavy compression. Samsung’s 360 Hz claim is 50 % faster than the current 240 Hz ceiling, while still delivering true 4K without pixel‑binning. In the FHD space, the 680 Hz mode outpaces the 480 Hz ceiling of the latest Mini‑LED gaming panels, giving Samsung a clear performance lead for esports titles that benefit from ultra‑high frame rates.

Pricing and adoption timeline

Analysts estimate a launch price of $1,200‑$1,400 for a reference monitor that integrates the panel, comparable to the top‑tier 4K 144 Hz OLED models released in 2023. The premium will be justified by the combination of 360 Hz refresh, HDR True Black, and the dual‑mode switch. Early adopters are likely to be professional esports teams and content creators who need both high resolution and ultra‑low latency. Samsung’s reported pipeline of 10 OEMs suggests that the first wave of products could appear in Q4 2026, with broader availability in 2027.

---

What this means for the industry

• Refresh‑rate ceiling is moving – The 360 Hz figure establishes a new benchmark for native‑4K panels, forcing competing LCD and Mini‑LED manufacturers to accelerate their high‑speed backplane development.
• DisplayPort 2.1 becomes mandatory – To exploit the bandwidth required for 4K × 360 Hz, manufacturers will need to adopt DP 2.1 or higher, which may accelerate the phase‑out of older DP 1.4 and HDMI 2.1 implementations.
• Dual‑mode flexibility could become standard – The ability to toggle between ultra‑high‑resolution and ultra‑high‑refresh modes on the same panel offers a compelling value proposition that could appear in future flagship monitors from other vendors.

Samsung’s announcement signals that the premium monitor market is entering a phase where temporal resolution (refresh rate) and spatial resolution (4K) will no longer be mutually exclusive. If the production yields hold and the supply chain can meet demand, we can expect a cascade of new monitor designs that leverage this technology throughout 2027.

---

For more details on the panel specifications, see Samsung Display’s official press release here.
