What’s new

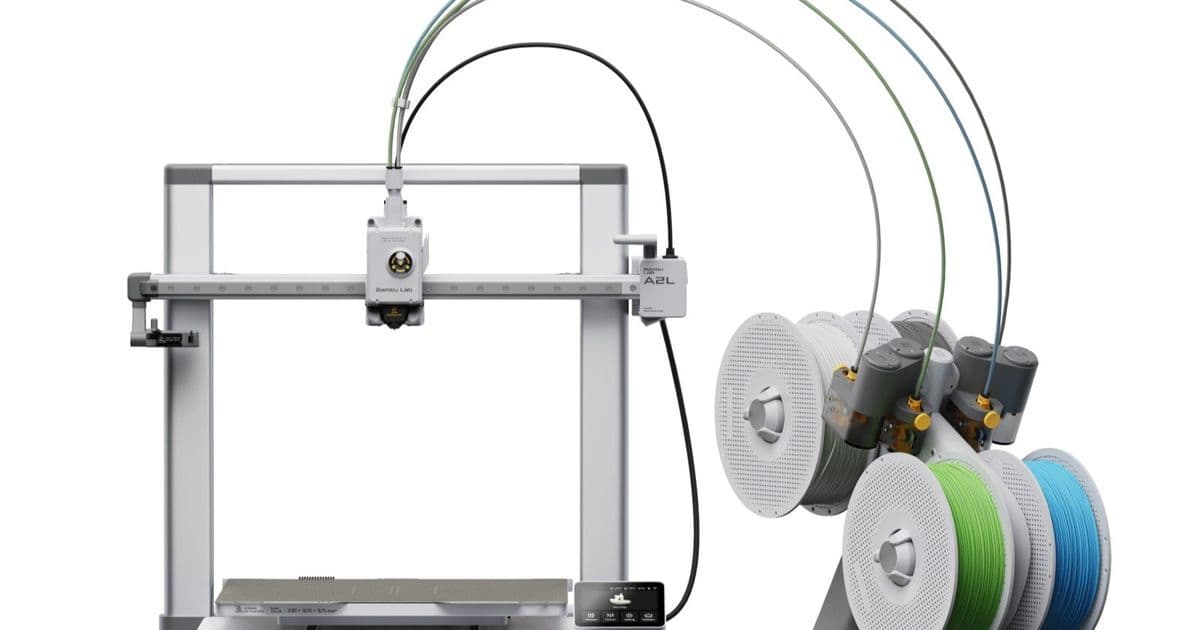

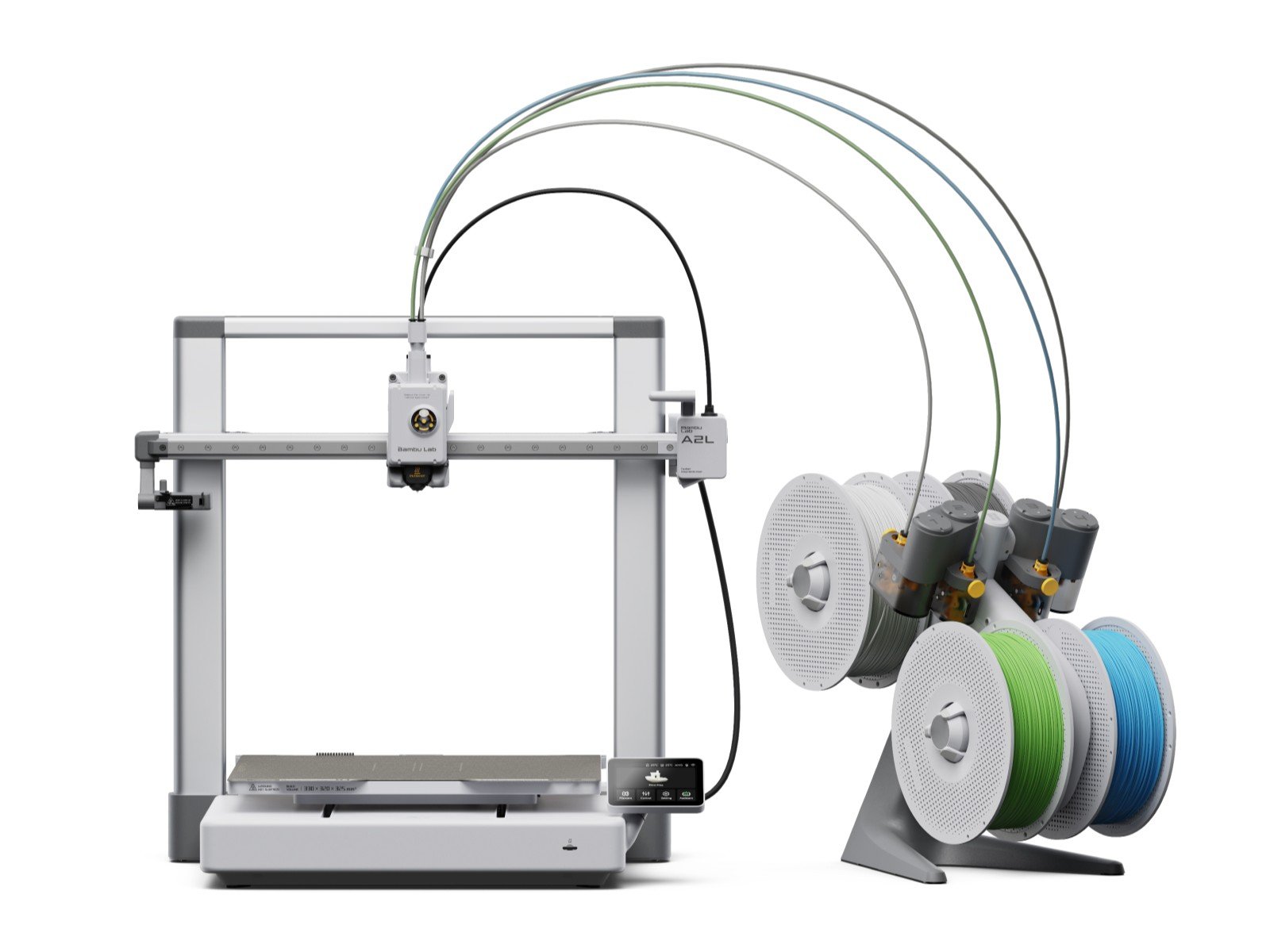

Bambu Lab has just announced the A2L, an open‑frame printer that pushes the company’s size envelope to a 330 × 320 × 325 mm (12.99 × 12.60 × 12.80 in) build volume. That translates to 105 % more printable space than the recently reviewed X2D, which maxes out at 256 × 256 × 260 mm. The larger envelope is not just a vanity metric; it lets you print full‑scale cosplay armor, architectural mock‑ups, or multiple small parts in a single run, cutting down on bed‑clear cycles and post‑processing time.

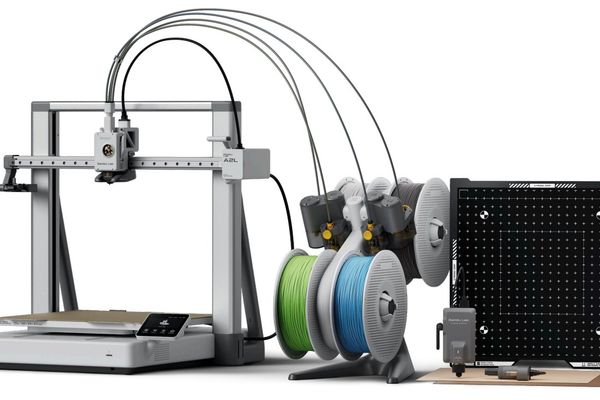

The A2L also ships with a blade‑cutting kit that converts the printer into a drawing plotter and cutter for thin sheets of cardboard, foam board, or flexible vinyl. Bambu Lab markets this as a “dual‑function” workflow for creators who need both additive and subtractive manufacturing in one footprint.

How it compares

Feature	Bambu A2L	Bambu X2D (closed)	Competitor (Creality CR‑10 Max)
Build volume	330 × 320 × 325 mm	256 × 256 × 260 mm	450 × 450 × 470 mm
Frame	Open (reinforced aluminum)	Closed (plastic enclosure)	Open (aluminum)
Max hot‑end temp	300 °C	300 °C	260 °C
Bed heating	Up to 80 °C	Up to 100 °C	Up to 110 °C
Filament slots	Up to 19 (4 × AMS + AMS Lite)	4 (single AMS)	1 (single extruder)
Print speed (recommended)	150 mm/s	180 mm/s	100 mm/s
Price (combo)	$569 / €489	$699 / €599 (X2D)	$999 / €899

The A2L’s PMSM servo motor and adaptive vibration compensation aim to match the precision of Bambu’s CoreXY‑style machines while keeping the mechanical simplicity of a single‑gantry design. Built‑in dampers further reduce ringing on the larger frame, a common pain point for open‑frame printers.

In terms of material handling, the printer can host four full AMS units plus an AMS Lite, giving you 19 independent filament paths. This is a step up from the X2D’s single AMS, which limits you to four colors or materials per job. The extra slots are especially handy for multi‑material prototypes that require soluble support, flexible TPU, and high‑temp PA‑CF in the same build.

When it comes to print quality, Bambu Lab claims the A2L can achieve CoreXY‑level surface finish despite the single‑gantry layout. Early benchmark prints (benchy, calibration tower, and a high‑detail cosplay helmet) show layer lines comparable to the H2S Lite, with RMS roughness around 8 µm on a 0.2 mm layer height. The key trade‑off is a slightly lower maximum print speed; the larger mass means the servo must accelerate more conservatively to avoid overshoot.

Who it’s for

• Cosplayers and prop makers – The extra volume lets you print a full chest plate or helmet without splitting the model, which reduces post‑assembly effort. The plotter module can also cut fabric or thin leather, turning the machine into a hybrid cutter for costume accessories.
• Small‑batch manufacturers – With 19 filament options, you can run a mixed‑material run (e.g., PETG body, TPU hinges, PVA support) without swapping spools. The ability to keep the bed heated at 80 °C also supports higher‑temp engineering plastics like PC‑ABS.
• Education and makerspaces – The open frame is easier to service and modify than a sealed enclosure. Schools can add custom sensors or safety interlocks, and the plotter kit doubles as a teaching tool for CNC‑style operations.
• Budget‑conscious power users – At $569 for the combo (including an AMS Lite), the A2L undercuts many large‑format printers that charge $800‑$1,200 for comparable volume, while still offering multi‑material capability.

{{IMAGE:2}}

Bottom line

The Bambu Lab A2L is a pragmatic evolution rather than a radical redesign. It expands the build envelope, adds a generous filament‑handling system, and throws in a plotter conversion kit that broadens its utility beyond pure 3D printing. Performance figures place it squarely in the same quality tier as Bambu’s CoreXY machines, though you’ll sacrifice a bit of top‑speed to keep the larger frame stable.

If you need a single machine that can both print large, multi‑material parts and cut thin sheets for prototypes or cosplay, the A2L is a compelling, price‑friendly option. For users who already own a closed‑frame CoreXY and prioritize maximum speed, the X2D or H2S Lite remain stronger choices.

---

Sources

• Official Bambu Lab A2L announcement page
• Bambu Lab product specifications PDF
• Benchy test results from Notebookcheck’s in‑house lab
